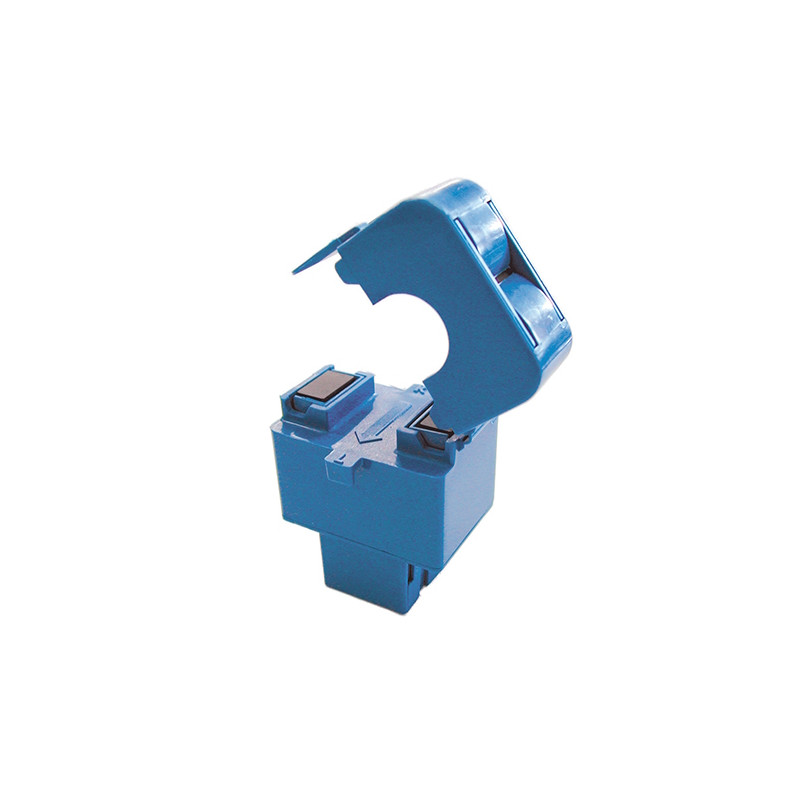

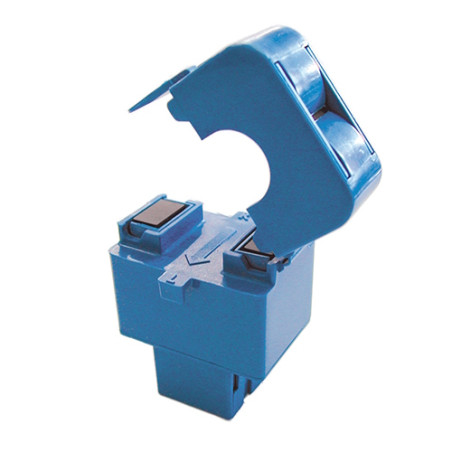

AT 20 B10 current transducer
AT 20 B10 current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

AT 20 B10 current transducer

  • AT 20 B10
  • Accuracy 1,50%
  • Rated Current [A] 20
  • Primary signal [AC / AC+DC / DC] AC
  • Supply voltage [V] Not required
  • Mounting [THT / SMD / DIN / Panel / On primary rail] On the primary bus
  • App Automation/Renewable Energy/Drives
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -20
  • Maximum operating temperature [°C] 60
  • Frequency response (-3dB) [kHz] 0,06
  • Feedback loop [open / closed] // Eta technology Current transformer

Applications:

  • Automation and Monitoring
    Current measurement for process control via distributed PLC or remote control (e.g., SCADA software).
  • Safety and Condition Monitoring
    Load monitoring for protection and predictive maintenance systems (e.g., conveyors, pumps, or HVAC motors).

Technical Data:

Measured quantity Current
Rated current 20A
Measuring range 20A
Output signal DC RMS voltage 0-10V
Signal Primary AC
Power Supply Not Required
Accuracy 1.5%
Operating Temperature -20°C…60°C
Technology Current Transformer
Mounting On Primary Busbar
Less
Read more
302.58 PLN
302.58 PLN Gross price / pcs.
246.00 PLN Net price / pc.
Tax included
Availability: Available quantity: 6
1 - 2 Business Days Estimated delivery / order fulfillment time. The order fulfillment time depends on the production capabilities.
