Manufacturer: LEM

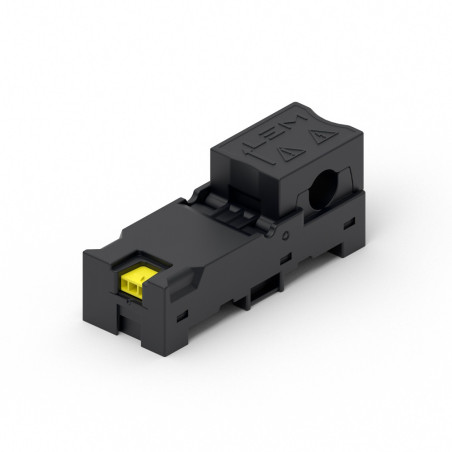

Current transducer HTRS 50 -SBI 4-20mA inst.

  • HTRS 50 -SBI 4-20mA inst.
  • Accuracy 2,00%
  • Rated Current [A] 50
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 12...24V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] DIN/Panel
  • App Automation/Power Supplies
  • Output signal type [current/voltage] current
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 85
  • Frequency response (-3dB) [kHz] 30
  • Feedback loop [open / closed] // Eta technology open

Applications:

  • Point status monitoring
  • Signal indicator light
  • Battery-powered applications
  • Uninterruptible power supplies (UPS)

Technical specifications:

Measured quantity Current
Rated current 50A
Measuring range ±100A
Output signal Current, 4…20mA
Primary signal AC+DC
Power supply 12…15V DC
Accuracy 2%
Operating Temperature -40°C…85°C
Technology Open Loop, Hall Effect
Mounting DIN Rail
