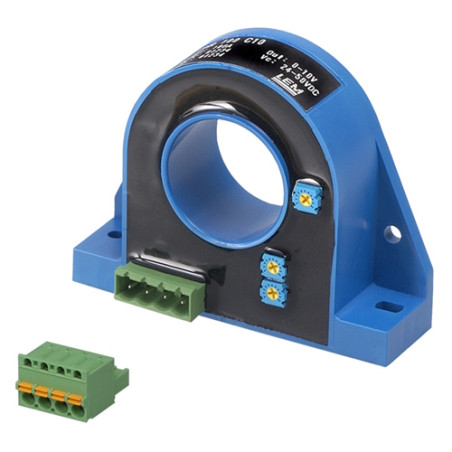

DHR 600 C5 current transducer

  • DHR 600 C5
  • Accuracy 1,00%
  • Rated Current [A] 600
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 20...50V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel
  • App Automation/Drives/Power Supplies/Renewable Energy
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 70
  • Frequency response (-3dB) [kHz] 6
  • Feedback loop [open / closed] // Eta technology open

DHR-C5 AC/DC Current Converter

A converter for electronic measurement of direct currents (DC) and distorted alternating currents (AC), with galvanic isolation between the primary circuit (power supply) and the secondary circuit (measurement). True RMS 0-5V output.

Features

  • Current measurements for VFD and SCR waveforms
  • True RMS output
  • Panel mountable
  • Eliminates insertion losses
  • Insulated plastic housing meets UL 94-V0.

Benefits

  • Large wire opening for up to ⌀ 32 mm
  • High isolation between primary and secondary circuits
  • Easy installation.

Applications

  • VFD-controlled loads VFD output indicates motor operation and connected Loads
  • SCR-Controlled Loads Accurate measurement of the phase triggered or pulse-triggered (time-proportional) by the SCR. Current measurement provides a faster response than temperature measurement.
  • Switched-Mode Power Supplies and Electronic Ballasts True RMS sensors are the most accurate way to measure the input power of a power supply or ballast.
Series DHR
Measurements Current
Nominal Value 600 A
Measurement Range 1800 A
Secondary Signal Nominal Voltage
Secondary Nominal Signal Value DC TRMS 0-5V
Primary Signal AC + DC
Supply Voltage External Unipolar DC
Supply Voltage Range 20 - 50 V
Accuracy 1 %
Operating Temperature -40 °C / 70 °C
Technology Open-loop Hall effect
Mounting Panel
Applications Automation, Smart Grid
Less
