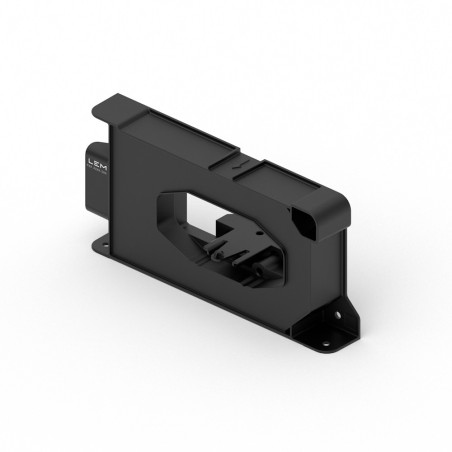

FRS 3000-S current transducer
FRS 3000-S current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

FRS 3000-S current transducer

  • FRS 3000-S
  • Accuracy 0,50%
  • Rated Current [A] 3000
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 12...24V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] On the primary bus
  • App Automation/Drives/Renewable energy/Power supplies/Welding machines
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 85
  • Frequency response (-3dB) [kHz] 1000
  • Feedback loop [open / closed] // Eta technology open

Application:

  • Wind turbine power converter
  • Electrolyzer
  • High-power drives

Technical data:

Measured quantity Current
Rated current 3000A
Measuring range ±9000A
Output signal Voltage, DC RMS 0-5V
Signal Primary AC+DC
Power Supply 12…24V
Accuracy 0.5%
Operating Temperature -40°C…85°C
Technology Open Loop, Hall Effect
Mounting On Primary Bus
