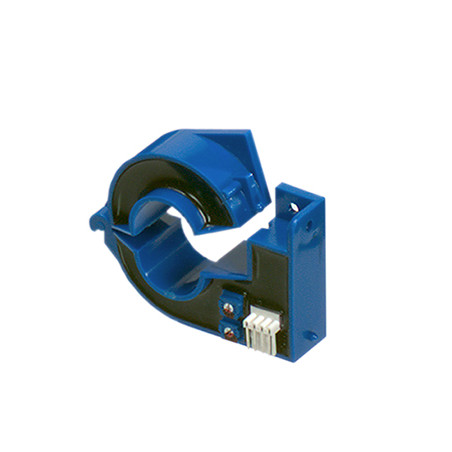

HTR 100-SB current transducer
HTR 100-SB current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

HTR 100-SB current transducer

  • HTR 100-SB
  • Accuracy 2,00%
  • Rated Current [A] 100
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 12...15V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel
  • App Automation/Drives/Renewable energy/Power supplies/Welding machines
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -10
  • Maximum operating temperature [°C] 70
  • Frequency response (-3dB) [kHz] 10
  • Feedback loop [open / closed] // Eta technology open

Applications:

  • Power supplies for telecommunications (monitoring and measurement)
  • Uninterruptible power supplies (UPS)
  • Switched-mode power supplies (SMPS)
  • Electrical chemistry
  • Chopper
  • Battery-powered applications

Technical data:

Measured quantity Current
Rated current 100A
Measuring range ±200A
Output signal Voltage, ±4V
Primary signal AC+DC
Power supply 12…15V DC
Accuracy 2%
Operating Temperature -10°C…70°C
Technology Open Loop, Hall Effect
Mounting Panel
578.10 PLN
578.10 PLN Gross price / pcs.
470.00 PLN Net price / pc.
Tax included

Availability: Please be advised that this product is out of stock

You can place a pre-order, report your interest in the product by clicking the "Ask for availability" button.

Out of stock
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse

Add to Wishlist

You must be logged in

  • Accuracy 2,00%
  • Rated Current [A] 100
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 12...15V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel
  • App Automation/Drives/Renewable energy/Power supplies/Welding machines
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -10
  • Maximum operating temperature [°C] 70
  • Frequency response (-3dB) [kHz] 10
  • Feedback loop [open / closed] // Eta technology open

Applications:

  • Power supplies for telecommunications (monitoring and measurement)
  • Uninterruptible power supplies (UPS)
  • Switched-mode power supplies (SMPS)
  • Electrical chemistry
  • Chopper
  • Battery-powered applications

Technical data:

Measured quantity Current
Rated current 100A
Measuring range ±200A
Output signal Voltage, ±4V
Primary signal AC+DC
Power supply 12…15V DC
Accuracy 2%
Operating Temperature -10°C…70°C
Technology Open Loop, Hall Effect
Mounting Panel
