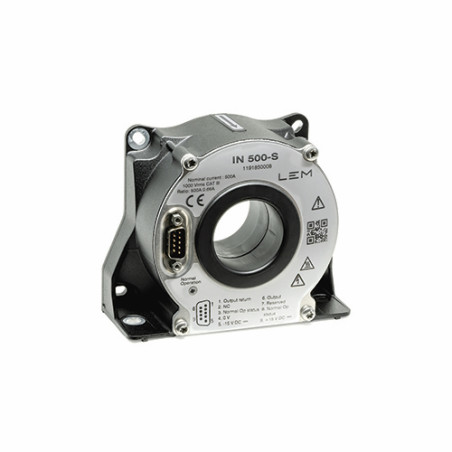

IN 500-S current transducer
IN 500-S current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

IN 500-S current transducer

  • IN 500-S
  • Accuracy 0,00%
  • Rated Current [A] 500
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 15V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel
  • App Automation/Renewable Energy
  • Output signal type [current/voltage] current
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 85
  • Frequency response (-3dB) [kHz] 520
  • Feedback loop [open / closed] // Eta technology closed

Applications:

  • Feedback element in high-performance gradient amplifiers for MRI
  • Feedback element in high-precision and stable power supplies
  • Calibration unit
  • Energy measurement
  • Medical equipment

Technical data:

Measured quantity Current
Rated current 500A
Measuring range ±800A
Output signal Current, ±667mA
Primary signal AC+DC
Power supply 15V DC
Accuracy 0.0018%
Operating Temperature -40°C…85°C
Technology Fluxgate IN Closed Loop
Mounting Panel
