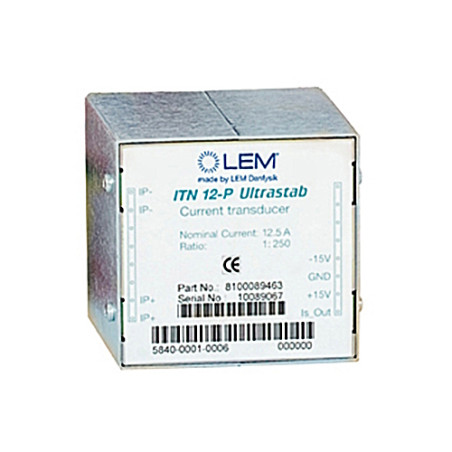

ITN 12-P ULTRASTAB current transducer
ITN 12-P ULTRASTAB current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

ITN 12-P ULTRASTAB current transducer

  • ITN 12-P ULTRASTAB
  • Accuracy 0,05%
  • Rated Current [A] 12,5
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 15V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] PCB
  • App Automation/Renewable Energy
  • Output signal type [current/voltage] current
  • Minimum operating temperature [°C] 10
  • Maximum operating temperature [°C] 45
  • Frequency response (-3dB) [kHz] 500
  • Feedback loop [open / closed] // Eta technology closed

Applications:

  • Feedback element in precision current-regulated devices (power supplies, etc.)
  • Calibration unit
  • Precise and stable inverters
  • Energy measurement
  • Medical equipment

Technical data:

Measured quantity Current
Rated current 12.5A
Measuring range ±12.5A
Output signal Current, ±50mA
Primary signal AC+DC
Power supply 15V DC
Accuracy 0.0509%
Operating Temperature 10°C…45°C
Technology Fluxgate IT Closed Loop
Mounting PCB
