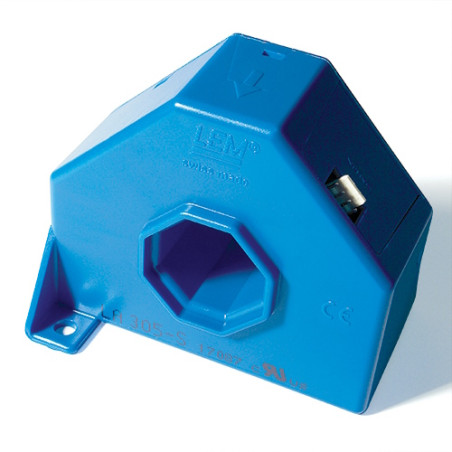

LA 305-S current transducer
LA 305-S current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

LA 305-S current transducer

  • LA 305-S
  • Accuracy 0,80%
  • Rated Current [A] 300
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 12...15V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel
  • App Automation/Drives/Renewable energy/Power supplies/Welding machines
  • Output signal type [current/voltage] current
  • Minimum operating temperature [°C] -10
  • Maximum operating temperature [°C] 85
  • Frequency response (-3dB) [kHz] 100
  • Feedback loop [open / closed] // Eta technology closed

Applications:

  • Variable speed AC drives and servo drives
  • Static converters for DC motor drives
  • Battery-powered applications
  • Uninterruptible power supplies (UPS)
  • Switched-mode power supplies (SMPS)
  • Power supplies for welding applications

Technical data:

Measured quantity Current
Rated current 300A
Measuring range ±500A
Output signal Current, ±120mA
Primary signal AC+DC
Power supply 12…15V DC
Accuracy 0.8%
Operating Temperature -10°C…85°C
Technology Closed-loop feedback, Hall effect
Mounting Panel
613.77 PLN
613.77 PLN Gross price / pcs.
499.00 PLN Net price / pc.
Tax included
Availability: Available quantity: 21
1 - 2 Business Days Estimated delivery / order fulfillment time. The order fulfillment time depends on the production capabilities.
