LAH 100-P current transducer
LAH 100-P current transducer

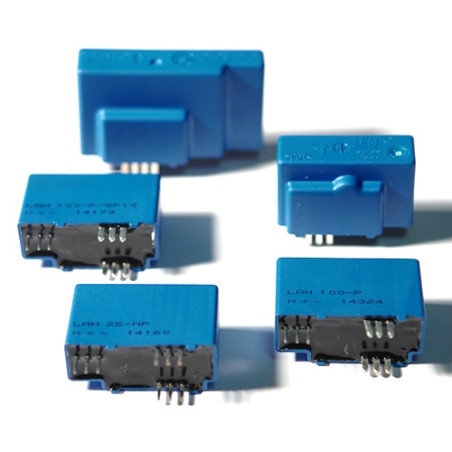

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

LAH 100-P current transducer

  • LAH 100-P
  • Accuracy 0.25
  • Rated Current [A] 100
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] ±12…15
  • Mounting [THT / SMD / DIN / Panel / On primary rail] THT
  • App Drives/Power Supplies/Renewable Energy/Welding
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -25
  • Maximum operating temperature [°C] 85
  • Frequency response (-3dB) [kHz] 200
  • Feedback loop [open / closed] // Eta technology closed

LAH 100-P Current Transducer

Photo:

No photo available

Description:

Designed for electronic current measurement: DC, AC, pulsed, etc., with galvanic isolation between the primary and secondary circuits.

Main Features:

  • Closed-loop (compensated) current transducer using the Hall effect
  • Insulated plastic housing according to UL 94-V0
  • Excellent accuracy
  • Very good linearity
  • Low temperature drift
  • Optimized response time
  • Wide bandwidth Transfer
  • No insertion losses
  • High immunity to external interference
  • Capacity of current overload

Applications:

  • Variable speed AC drives and servo motors
  • Static converters for DC motor drives
  • Battery-powered applications
  • Uninterruptible power supplies (UPS)
  • Switched-mode power supplies (SMPS)
  • Power supplies for welding applications

Technical data:

Parameter Value
Rated RMS Primary Current 100A
Primary Current Measurement Range 0…±160A
Resistance Measurement at: TA=70°C TA=85°C
RM min RM max RM min RM max
±12V IPN[±A DC] 0 63Ω 0 57Ω
IPN[A RMS] 0 11Ω 0 5Ω
±15V IPN[±A DC] 20Ω 120Ω 45Ω 114Ω
IPN[A RMS] 20Ω 51Ω 45Ω 45Ω
Rated Secondary Current RMS 50mA
Turbo Transformer Ratio 1:2000
Supply voltage (±5%) ±12…15V
Current consumption at ±15V 10 + ISmA
Error at IPN, TA=25°C ±0.3%
Frequency response (-1dB) DC…200kHz
Operating Temperature -25÷85°C
Storage Temperature -40÷90°C
Secondary Winding Resistance at: TA=70°C 115Ω
TA=85°C 121Ω
Weight 24g
Less
Read more
100.86 PLN
100.86 PLN Gross price / pcs.
82.00 PLN Net price / pc.
Tax included

Availability: Please be advised that this product is out of stock

You can place a pre-order, report your interest in the product by clicking the "Ask for availability" button.
