LF 505-S current transducer
LF 505-S current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

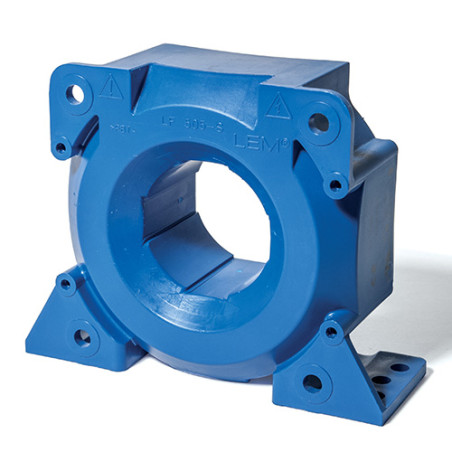

LF 505-S current transducer

  • LF 505-S
  • Accuracy 0,60%
  • Rated Current [A] 500
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 15...24V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel
  • App Automation/Drives/Renewable energy/Power supplies/Welding machines
  • Output signal type [current/voltage] current
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 70
  • Frequency response (-3dB) [kHz] 100
  • Feedback loop [open / closed] // Eta technology closed

Applications:

  • Single-phase or three-phase inverters
  • Choppers for propulsion and braking
  • Drive converters
  • Auxiliary converters
  • Battery chargers

Technical data:

Rated current 500A
Measuring range ±800A
Output signal Current, ±100mA
Primary signal AC+DC
Power supply 15…24V DC
Accuracy 0.6%
Operating Temperature -40°C…70°C
Technology Closed-loop feedback, Hall effect
Mounting Panel
757.68 PLN
757.68 PLN Gross price / pcs.
616.00 PLN Net price / pc.
Tax included
Availability: Available quantity: 4
1 - 2 Business Days Estimated delivery / order fulfillment time. The order fulfillment time depends on the production capabilities.
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse

Add to Wishlist

You must be logged in

  • Accuracy 0,60%
  • Rated Current [A] 500
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 15...24V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel
  • App Automation/Drives/Renewable energy/Power supplies/Welding machines
  • Output signal type [current/voltage] current
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 70
  • Frequency response (-3dB) [kHz] 100
  • Feedback loop [open / closed] // Eta technology closed

Applications:

  • Single-phase or three-phase inverters
  • Choppers for propulsion and braking
  • Drive converters
  • Auxiliary converters
  • Battery chargers

Technical data:

Rated current 500A
Measuring range ±800A
Output signal Current, ±100mA
Primary signal AC+DC
Power supply 15…24V DC
Accuracy 0.6%
Operating Temperature -40°C…70°C
Technology Closed-loop feedback, Hall effect
Mounting Panel
