DV 1500 voltage converter
DV 1500 voltage converter

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

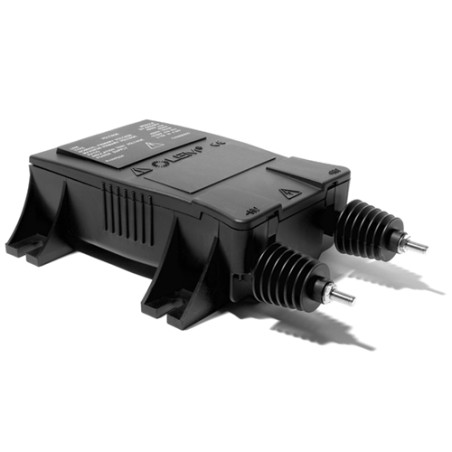

DV 1500 voltage converter

  • DV 1500
  • Accuracy 0,30%
  • Rated Current [A] 1500
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 15...24V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel
  • App Automation/Drives/Renewable energy/Power supplies/Welding machines
  • Output signal type [current/voltage] current
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 85
  • Frequency response (-3dB) [kHz] 12
  • Feedback loop [open / closed] // Eta technology Digital isolation

DV 1500

Application:

  • Single-phase or three-phase inverters
  • Choppers for propulsion and braking
  • Drive converters
  • Auxiliary converters
  • High-power drives
  • Transformer stations
  • On-board energy meters
  • Energy measurement

Technical data:

Measured value Voltage
Rated voltage 1500V
Range Measurement ±2250V
Output Signal Current, ±75mA
Primary Signal AC+DC
Power Supply 15…24V DC
Accuracy 0.3%
Operating Temperature -40°C…85°C
Technology Insulation digital
Mounting Panel
