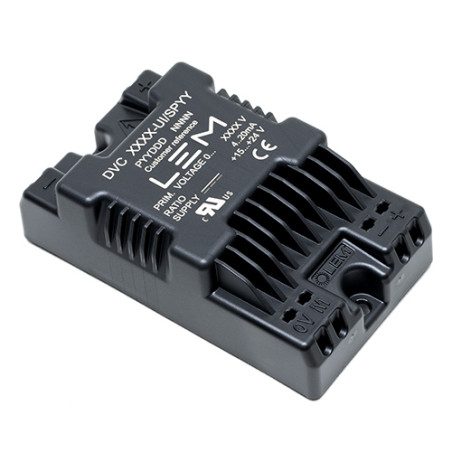

DVC 1000-UI voltage converter
DVC 1000-UI voltage converter

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

DVC 1000-UI voltage converter

  • DVC 1000-UI
  • Accuracy 1,70%
  • Rated Current [A] 1000
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 15...24V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel/DIN
  • App Automation/Drives/Renewable energy/Power supplies/Welding machines
  • Output signal type [current/voltage] current
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 85
  • Frequency response (-3dB) [kHz] 35
  • Feedback loop [open / closed] // Eta technology Isolation amplifier

DVC 1000-UI

Applications:

  • Variable speed AC motor drives and servo drives
  • Static converters for DC motor drives
  • Battery-powered applications
  • Uninterruptible power supplies (UPS)
  • Power supplies for welding applications
  • Single-phase or three-phase inverters
  • Auxiliary converters
  • Transformer stations

Technical data:

Measured quantity Voltage
Voltage Rated Current 1000V
Measuring Range ±1500V
Output Signal Current, 4…20mA
Primary Signal AC+DC
Power Supply 15…24V DC
Accuracy 1.7%
Temperature Operating Temperature -40°C…85°C
Technology Isolation Amplifier
Mounting DIN, Panel
