DVM 4000-UI voltage converter
DVM 4000-UI voltage converter

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

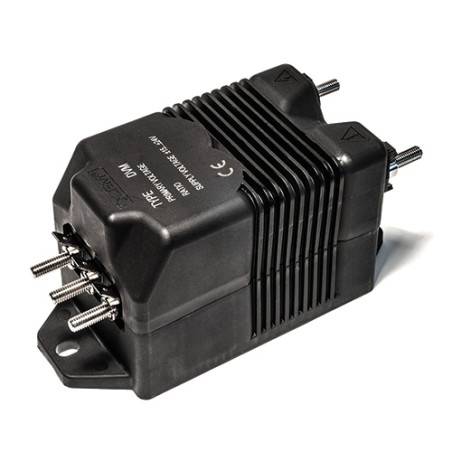

DVM 4000-UI voltage converter

  • DVM 4000-UI
  • Accuracy 0,50%
  • Rated Current [A] 4000
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 15...24V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel
  • App Automation/Drives/Renewable energy/Power supplies/Welding machines
  • Output signal type [current/voltage] current
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 85
  • Frequency response (-3dB) [kHz] 12,8
  • Feedback loop [open / closed] // Eta technology Digital isolation

DVM 4000-UI

Applications:

  • Variable Speed ​​AC Motor Drives and Servo Drives
  • DC Motor Drives
  • Battery-Powered Applications
  • Uninterruptible Power Supplies (UPS)
  • Switched-Mode Power Supplies (SMPS)
  • Power Supplies for Welding Applications
  • Renewable Energy Sources (Solar and Wind)
  • Single- and Three-Phase Inverters
  • Propulsion and Braking Choppers
  • Drive Converters
  • Auxiliary Converters
  • High-Power Drives
  • Station Transformer-based

Technical Data:

Measured Quantity Voltage
Rated Voltage 4000V
Measuring Range ±4000V
Output Signal Current, 4…20mA
Primary Signal AC+DC
Power Supply 15…24V DC
Accuracy 0.5%
Operating Temperature -40°C…85°C
Technology Digital Isolation
Mounting Panel
