Manufacturer: STEGO

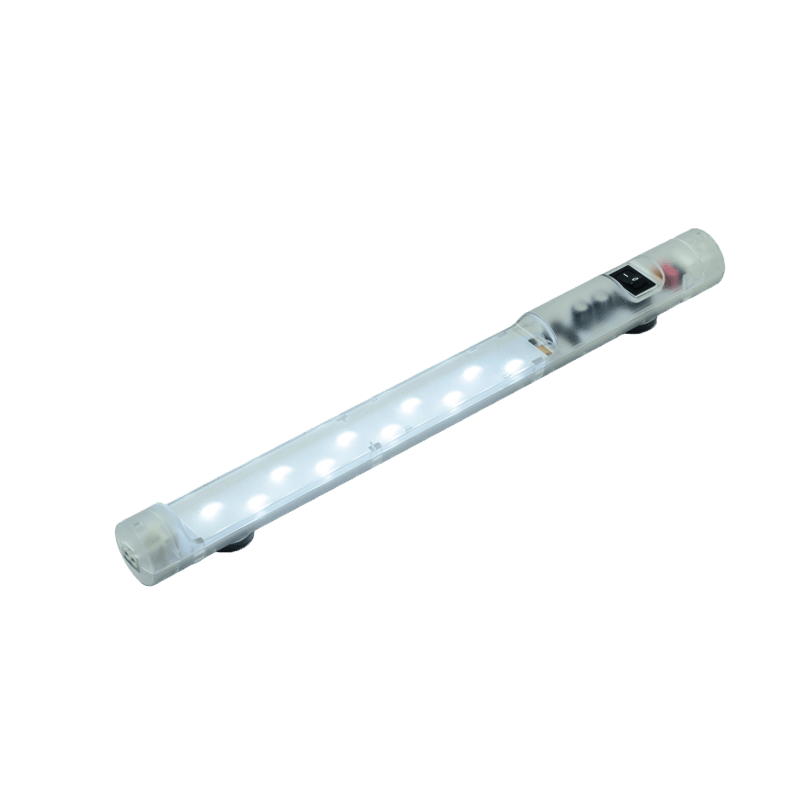

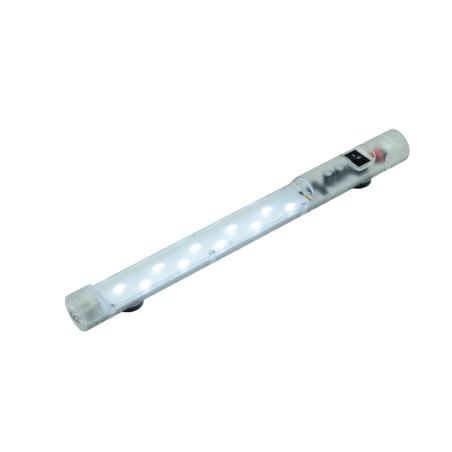

LED 025 - LED lamp for electrical housing - 02540.0-03

  • 02540.0-03
  • Supply voltage 100 V - 240 V AC
  • Dimensions 42 x 40 x 351 mm
  • Switching Wyłącznik zał./wył.
  • Protection rating IP20
  • Protection class II
  • Electrical hookup 2-stykowe złącze wtykowe z zatrzaskiem
  • Light Color 6000 - 7000 K
  • Weight 200 g
  • Lumen 400 Lm

Compact LED light for electrical enclosures. Electrical connection via male connector with latch. Long service life of the switch cabinet lamp (LED) of 60,000 hours. Mounting via magnet, rail, screw, or clip. Lamp body can be rotated 180°, beam angle 120° for optimal illumination.

  • Switching options: PIR motion detector, on/off switch.
  • Wide voltage range.
  • Luminous flux 400 lm.
  • Light color: 6000 to 7000 K (daylight white).
  • Series connection / through wiring.
