Manufacturer: STEGO

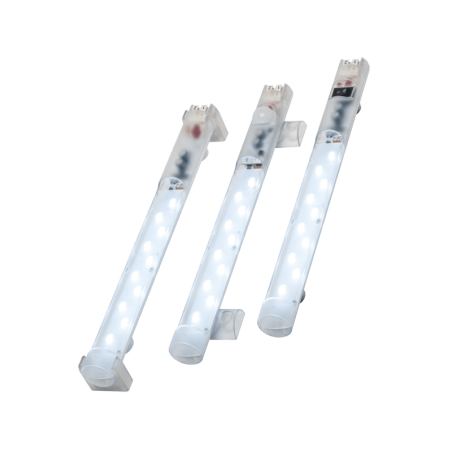

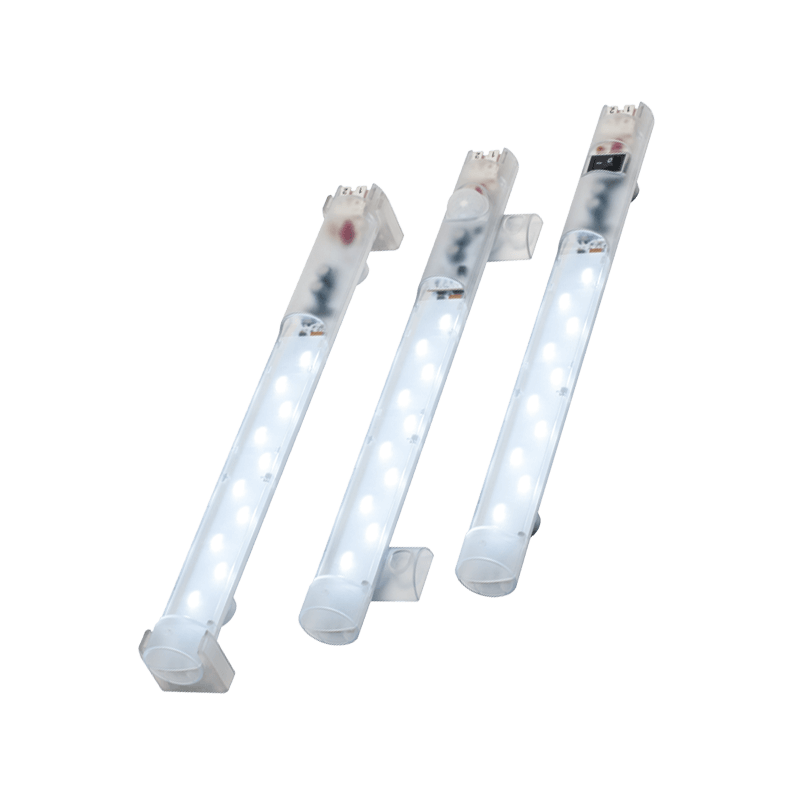

LED 025 - LED lamp for electrical housing - 02540.1-10

  • 02540.1-10
  • Supply voltage 24 V - 48 V DC
  • Dimensions 36 x 32 x 351 mm
  • Switching Wyłącznik zał./wył.
  • Protection rating IP20
  • Protection class II
  • Electrical hookup Złącze sprężynowe-naciskowe 2-biegunowe do kabla z pzewodami drutowymi 2,5 mm², Przewód wielodrutowy z izolowaną końcówką kablową 1,5 mm
  • Light Color 6000 - 7000 K
  • Weight 200 g
  • Lumen 400 Lm

Compact Ecoline LED electrical enclosure light for use in electrical cabinets, enclosures, and high-density technical spaces. The LED electrical enclosure light has a 60,000-hour lifespan and can be mounted using a magnet, screw, or clip. Spring-loaded connectors for serial connection/through wiring.

  • Switching options: PIR motion detector, on/off switch, no switch (prepared for external switch)
  • Wide voltage range
  • Luminous flux 400 lm, daylight white: 6000 to 7000 K
  • Spring-loaded connector
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Supply voltage 24 V - 48 V DC
  • Dimensions 36 x 32 x 351 mm
  • Switching Wyłącznik zał./wył.
  • Protection rating IP20
  • Protection class II
  • Electrical hookup Złącze sprężynowe-naciskowe 2-biegunowe do kabla z pzewodami drutowymi 2,5 mm², Przewód wielodrutowy z izolowaną końcówką kablową 1,5 mm
  • Light Color 6000 - 7000 K
  • Weight 200 g
  • Lumen 400 Lm

Compact Ecoline LED electrical enclosure light for use in electrical cabinets, enclosures, and high-density technical spaces. The LED electrical enclosure light has a 60,000-hour lifespan and can be mounted using a magnet, screw, or clip. Spring-loaded connectors for serial connection/through wiring.

  • Switching options: PIR motion detector, on/off switch, no switch (prepared for external switch)
  • Wide voltage range
  • Luminous flux 400 lm, daylight white: 6000 to 7000 K
  • Spring-loaded connector
