Line distance transducer SP1 series

The Celesco SP1 String Pot is a compact, economical and durable device that utilizes a flexible cable, a spring-loaded spool, and a potentiometer to detect and measure linear position.
The SP1 is designed for tight spaces, high-cycle applications  and generously allows cable misalignment. With 4 different measurement ranges and handy mounting brackets, the SP1 is a perfect solution for many applications, from light industrial to OEM.

rysunek
COMPLETE SPECIFICATIONS
- Full Stroke Range Options 0..12 cm, 0..31,75 cm, 0..63,5 cm, 0..127 cm
- Output Signal voltage divider (potentiometer)
- Accuracy ±0.25 to ±1.00% (see part no. above)
- Repeatability ± 0.05% full stroke
- Measuring Cable f = 0,5cm, nylon-coated stainless steel
- Enclosure Material: polycarbonate
- Sensor: plastic-hybrid precision potentiometer
- Weight: 95 g
- Input Resistance: 10 kΩ ±10%
- Power Rating, Watts 2W
- Recommended Maximum Input Voltage 30VAC/DC
- Enclosure IP50
- Operating Temperature -18...71°C

Catalogue number

 SP1-4SP1-12SP1-25SP1-50
full stroke
range
0...12cm 0...31,75cm 0...63,5cm 0...127cm
accuracy 1% 0,5% 0,25% 0,25%
cycle life 2.5 x 106 0.5 x 106 250 x 103 250 x 103

Output signal

Dimensions [inch/mm]

rysunek rysunek
Net price in

+0.050 pełnego zakresu [1]

0.25% pełnego zakresu [1]

1.00% pełnego zakresu [1]

Output signal [3]

Manufacturer [1]

Photo Manufacturer No.
Manufacturer
Catalog No.
Product type Output signal Check stock aviability Quantity [pcs.] Net price $ [USD] / pcs. Order
Check
0
from 1 1095.29
Check
0
from 1 1095.29
Check
0
from 1 1294.43
Check
0
from 1 1294.43
Check
0
from 1 807.06
Check
0
from 1 807.06
Check
0
from 1 807.06
Check
0
from 1 807.06
Check
0
from 1 1294.43
Check
0
from 1 1294.43
Check
0
from 1 1042.88
Check
0
from 1 1042.88
Check
0
from 1 1042.88
Check
0
from 1 1042.88
Check
0
from 1 1462.13
Check
0
from 1 1462.13
Check
0
from 1 1462.13
Check
0
from 1 1462.13
Check
0
from 1 1661.28
Check
0
from 1 1661.28
Check
0
from 1 1661.28
Check
0
from 1 1661.28

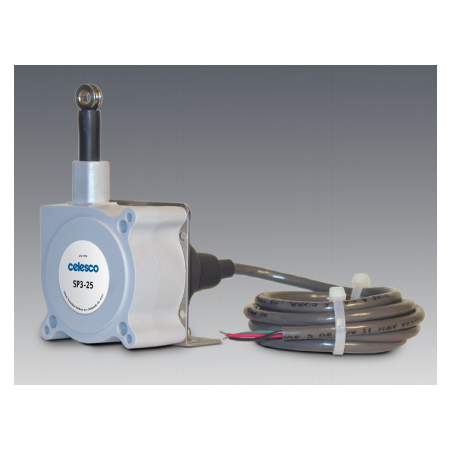

SP3-4 Linkowy przetwornik odległości | Celesco

Manufacturer No.: SP3-4

Catalog No.: A-X-X-077369

Manufacturer: Celesco

Catalogue data

Output signal
4...20 mA (2-wire) / 0...10 Vdc
1.00% pełnego zakresu

Price $ [USD] / pcs.

Quantity [pcs.] Net price tax_class
from 1 1.462,13 PLN 1.798,42 PLN

Order

Stock aviability: Check
