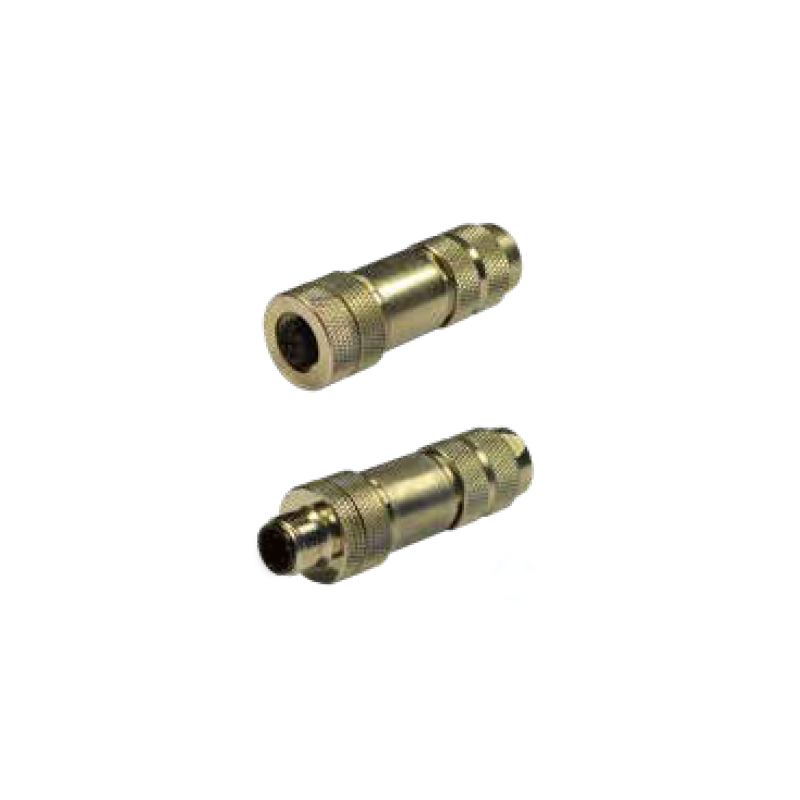

M12 circular connector for mounting 12F14000

  • 12F14000
  • Type Round connector for mounting
  • Housing type Straight 180°
  • Colour Black
  • Mounting type M12 coding-A
  • contact Female
  • Suitable for cable gland Standard PG9
  • Tailored for IEC 61076-2-101
  • Number of contacts 4 pins

M12 series field-mountable connector, fully shielded.

Specifications:

Terminal Type Screw Contacts
Contact Screw Torque 0.2 N*m
Housing Material Nickel-plated Brass
Contact Material Gold-plated brass
Coupling Nut Type Round Knurled
Coupling Nut Material M8 Nickel-plated brass
Coupling Nut Torque M8 0.4 N*m
Nominal Voltage 250V AC/DC
Nominal Current 4A
Temperature Range -25 °C +85 °C
Material: O-ring NRB Rubber
Appropriate cable Ø4 - 8mm
