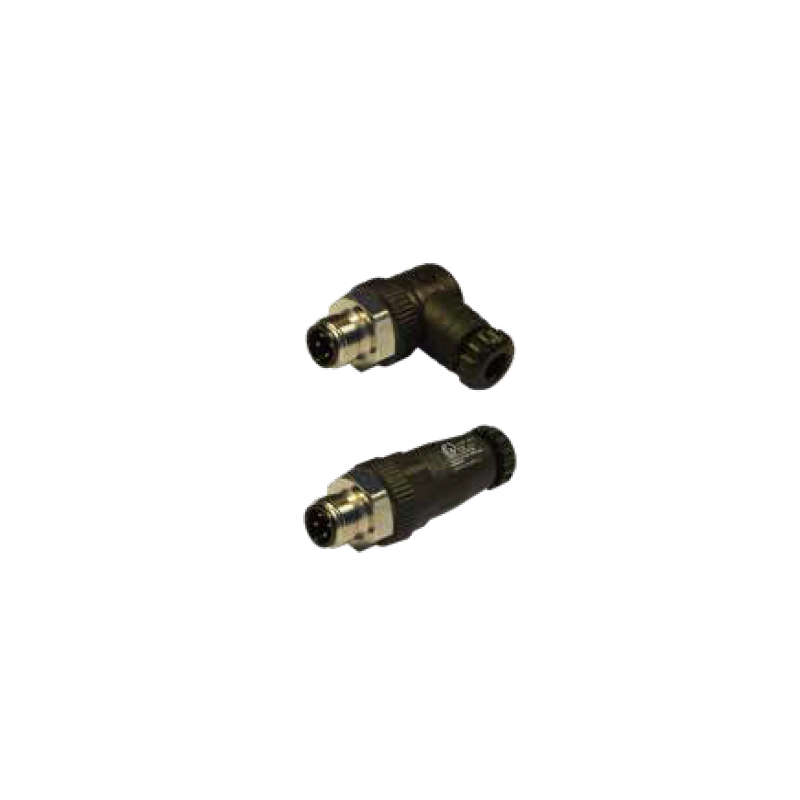

M12 series field-installable connector, compatible with AXET.
Tip Type | Screw Contacts |
Contact Screw Torque | 0.2 N*m |
Housing Material | PA66 UL94-V0 |
Contact Material | Gold-Plated Brass |
Coupling Nut Type | Hexagonal (SW17) |
M12 Coupling Nut Material | Nickel-Plated Brass |
M12 Coupling Nut Tightening Torque | 0.6 N*m |
Nominal Voltage | 250V AC/DC |
Nominal Current | 4A |
Temperature Range | -20 °C +85 °C |
Material: O-ring | NRB Rubber |
Appropriate cable | Ø4 - 6mm |
Are you interested in this product? Do you need additional information or individual pricing?
M12 series field-installable connector, compatible with AXET.
Tip Type | Screw Contacts |
Contact Screw Torque | 0.2 N*m |
Housing Material | PA66 UL94-V0 |
Contact Material | Gold-Plated Brass |
Coupling Nut Type | Hexagonal (SW17) |
M12 Coupling Nut Material | Nickel-Plated Brass |
M12 Coupling Nut Tightening Torque | 0.6 N*m |
Nominal Voltage | 250V AC/DC |
Nominal Current | 4A |
Temperature Range | -20 °C +85 °C |
Material: O-ring | NRB Rubber |
Appropriate cable | Ø4 - 6mm |
