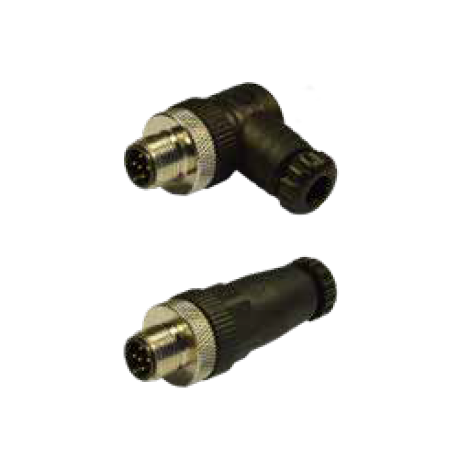

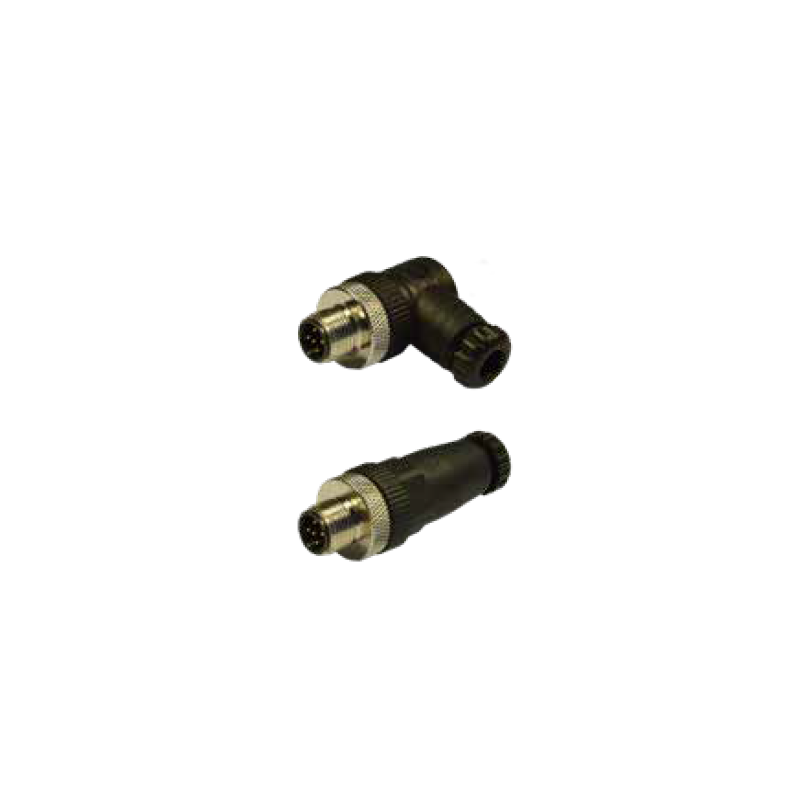

M12 circular connector for mounting B-12MC5000
M12 circular connector for mounting B-12MC5000
M12 circular connector for mounting B-12MC5000
M12 circular connector for mounting B-12MC5000

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: H.T.P.

M12 circular connector for mounting B-12MC5000

  • B-12MC5000

M12 series B-coded connector, for mounting.

Technical data:

Tip type Screw contacts
Contact screw torque 0.2 N*m
Housing material PA66 UL94-V2
Contact Material Gold-Plated Brass
Coupling Nut Type Round Knurled
M12 Coupling Nut Material Nickel-Plated Brass
M12 Coupling Nut Tightening Torque 0.4 N*m
Nominal Voltage 60V AC/DC
Nominal Current 4A
Temperature Range -40°C +90°C
Material: O-ring NRB Rubber
Appropriate cable Ø4 - 6mm
