Manufacturer: Honeywell

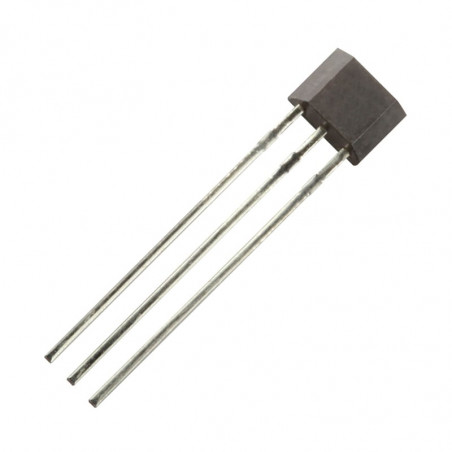

Magnetic sensors

Magnetic Sensors

Magnetic sensors utilize the Hall effect and respond to changes in the magnetic field. The smallest sensors offered by DACPOL are characterized by minimal power consumption and are designed for battery-powered solutions. Other sensor series are adapted to popular voltage types used in electronic systems. Depending on the model, the output signal is pulsed or digital.

The magnetic sensors we offer are designed to operate at both low and high temperatures, extending their range of applications. They are used as speed, angle, and position sensors. Due to their low cost, size, and power consumption, they are popular in all types of electronic systems and PCB assembly.

Magnetic field sensors offered by Dacpol are also designed for water and gas meters with built-in radio modules and radio reading systems.

Below are the Dacpol markings and selected parameters:


PN Dacpol

DAC-MS360-5.5

DAC-MS35-30

DAC-MS200-50

DAC-MS190-10
Power

1.65...5.5VDC

2.4V...3.6V

1.8...5.5V

1.7V…5.5V
Power consumption

360nA

35nA

200nA

190nA
Frequency

5.5 Hz

30 Hz

50 Hz

10 Hz

Example diagram of one of the offered sensors:


Exact data is provided when selecting the optimal model.
