MCI soft starts are verified solutions for 3 phase asynchronous motors start up.They keep start up currents on reasonable level, which allow to elongate the non failure operation of machine.
They are perfect solutions for application where there are many soft start cycles.
They can be used with pumps and ventilators, feeders, transporters. Because of set up start torque and unique function (kick start) which force static friction, they are able to cope with almost every application. They reduce stresses and vibrations during start ups and stops, which make production lines more reliable. Also start up currents reduction lowers voltage drops on light mains.
Properties
- Unlimited turn ons per hour
- start up time set up
0-10 s, MCI 3, MCI 15, MCI 15BP, MCI 25; 0-20 s, MCI 30 I-O; 0-30 s, MCI 40-3D I-O; MCI 50 I-O
- coasting time set up:
0-10 s, MCI 3, MCI 15, MCI 15BP, MCI 25; 0-20 s, MCI 30 I-O; 0-60 s, MCI 40-3D I-O; MCI 50 I-O
- set up starting toque up to 85 %
- static friction forcing (kick start)
- universal control voltage 24-480V ac/dc
- maximum operation voltage up to 600 V Ac
- Control in three phases - some models
- Automatic phase decay detection
- Automatic adaptation to 50/60 Hz
- LED operation indicator
- build in protection varistor
- optional additional contacts
- easy and quick assembly
- compact construction with radiator
- DIN assembled
- standards EN 60947-4-2
- Certificates CE and UL (UL 508)
Type |
Operation voltage V ac |
motor power |
motor current |
Width L [mm]1) |
Additional contacts |
Catalogue number |
MCI 3 |
380 - 415 |
1,5kW |
3 A |
22,5 |
- |
037N0074 |
MCI 3 |
440 - 480 |
1,5kW |
3 A |
22,5 |
- |
037N0084 |
MCI 15BP |
400 - 415 |
7,5kW2) |
15 A2) |
45 |
- |
037N0139 |
MCI 15 |
380 - 480 |
7,5kW |
15 A |
45 |
- |
037N0039 |
MCI 25 |
380 - 480 |
IlkW |
25 A |
90 |
- |
037N0040 |
MCI 30 |
380 - 480 |
15kW3) |
25/303) A |
90 |
IO/bypass |
037N0070 |
MCI 40-3D IO |
380 - 480 |
21kW4) |
29/433) A |
90 |
IO/bypass |
037N0092 |
MCI 50-3 10 |
380 - 480 |
22kW3) |
35/503) A |
180 |
IO/bypass |
037N0090 |
MCI 50-3 10 |
380 - 480 |
45kW4) |
863) A |
180 |
IO/bypass |
037N0090 |
MCI 3 |
500 - 600 |
2,2kW |
3 A |
22,5 |
- |
037N0075 |
MCI 15 |
500 - 600 |
7,5kW |
15 A |
45 |
- |
037N0041 |
MCI 25 |
500 - 600 |
15kW |
25 |
90 |
- |
037N0042 |
MCI 30 |
500 - 600 |
18,5kW3) |
25/303) A |
90 |
IO/bypass |
037N0071 |
MCI 50-3 10 |
500 - 600 |
30kW3) |
35/503) A |
ISO |
IO/bypass |
037N0091 |

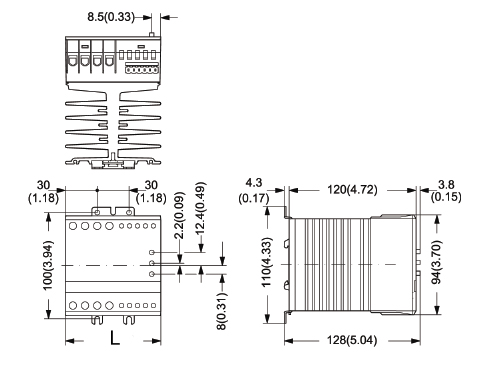

1)DIN width assembly
2)Needed down time between soft starts for 15A is 110s, 12A(100s), 9A(95s)
3)with by-pass
4)only in internal triangle circuit.

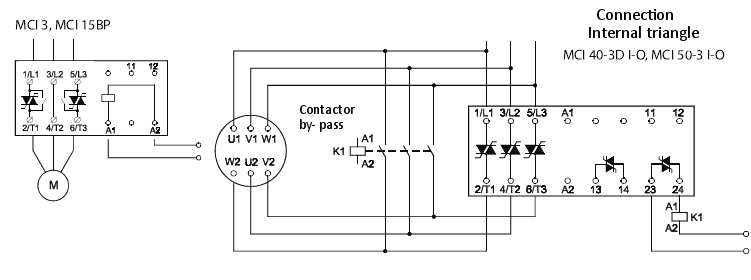

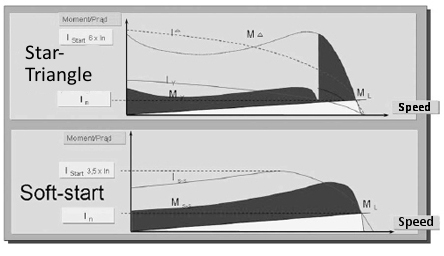

During start up soft starts rises linearly motor supplying voltage up to nominal value. Motor speed depends on the load torque. Time is independent from frequency or load. In hardest situations kick start function can be used.
|
