FSSBRD32 FSSBRD System
FSSBRD32 FSSBRD System

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FLEXICON

FSSBRD32 FSSBRD System

  • FSSBRD32
  • Interior diameter
  • Exterior diameter
  • Nominal size [mm]
  • Bending radius R [mm]

Properties

  • Operating temperature range: -100°C to +400°C
  • Free of halogens, sulfur and phosphorus
  • Has antistatic properties
  • Oil resistant
  • Self-extinguishing
  • Product with naturally low fire hazard (LFH)
  • Provides EMC protection: 50dB@50MHz
  • Abrasion resistance
  • Natural UV resistance
  • Tensile strength: 150N for size 20mm
  • Compressive strength: 1000N
  • Minimum bend radius: 150

Material

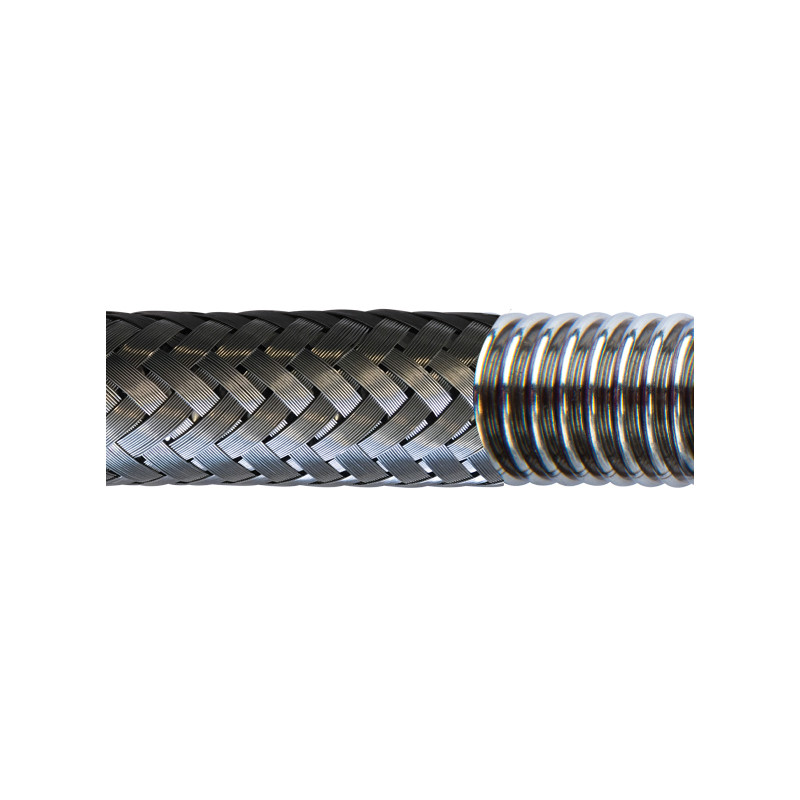

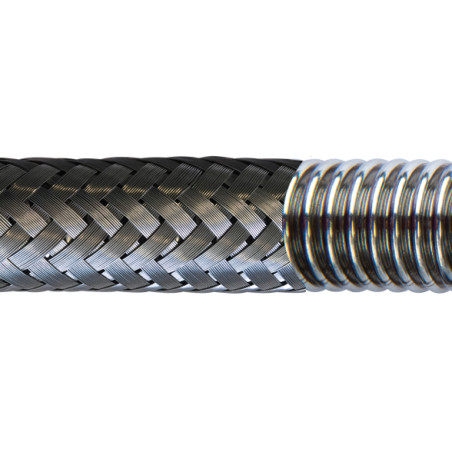

  • Stainless steel tube, corrugated braid

IP ratings

  • IP68 protection

Certificates and standards

  • Vibration and shock test EN61373 Cat 2
  • Standard EN 45545-2 R23-HL3 R22-HL3
  • REACH/RoHS compliant
  • EN61386 compliant
  • London Underground approved
