Manufacturer: FLEXICON

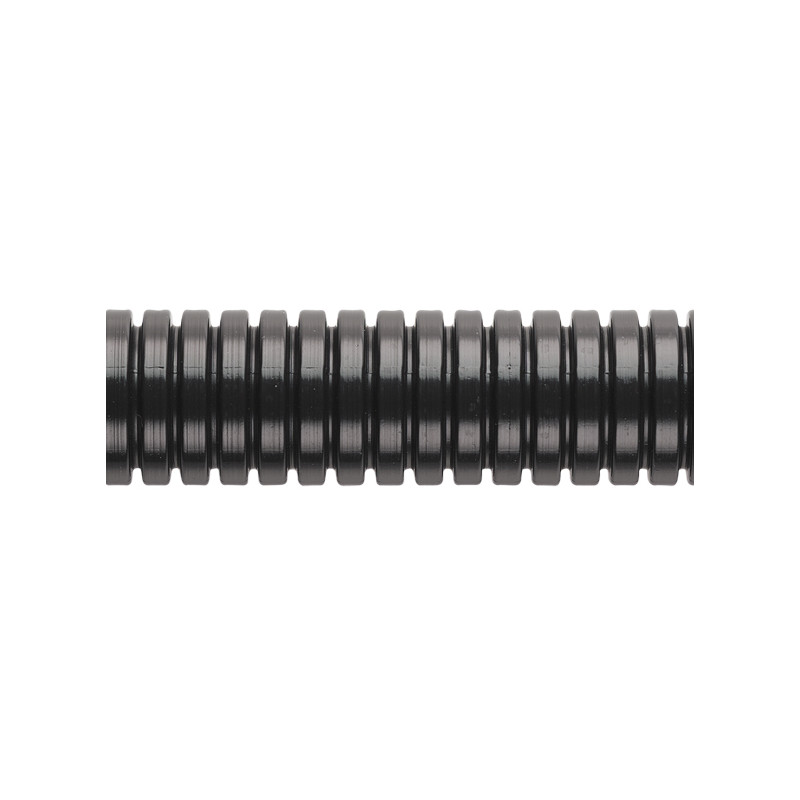

FPASC FPAS21C system

  • FPAS21C
  • Interior diameter
  • Exterior diameter
  • Nominal size [mm]
  • Bending radius R [mm]

Properties

  • Temperature range during operation: -40°C to +120°C
  • High fatigue resistance and high abrasion resistance
  • Recovers shape after crushing
  • Free of halogens, sulfur and phosphorus
  • Standard UV resistance
  • Oil resistant
  • Self-extinguishing
  • Tensile strength: 40N for size 21mm
  • Compressive strength: 75N
  • Minimum bend radius: 45
  • Suitable for applications requiring constant movement

IP degrees

  • IP66, IP67, IP68, IP69 protection

Certificates and standards

  • EN61373 cat 2 vibration and shock test
  • flammability class UL94 V2
  • Compliant with EN61386
  • REACH/RoHS compliant
  • UL Certified
