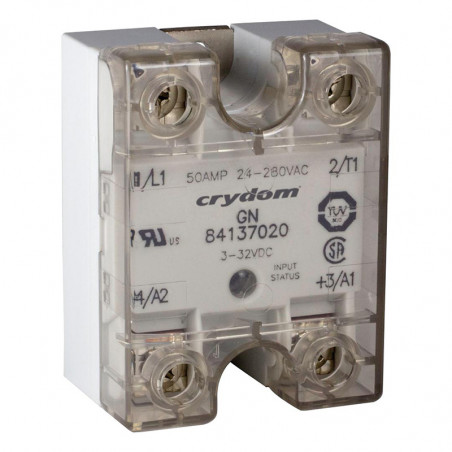

One phase semiconductor relays - gn series
  • One phase semiconductor relays - gn series

Photos are for informational purposes only. View product specification

Manufacturer: Crydom

One phase semiconductor relays - gn series

1) Nominal current 10 ÷ 125A
2) Nominal voltage 24 ÷ 660VAC
3) Input voltage signalization LED
4) Overvoltage build in protection
5) Insulation voltage 4000VAC
6)Versions with IP20 casing available
7)ULE79183, CSALR38595, TUV, CE compatible

Output parameters

Voltage range [Vrms]
24 - 280 Vac 48 - 660 Vac
peak voltage
600 V 1200 V
Load current [A]
10 25 50 75 100 125
Min load current [mA]
50 50 100 100 100 100
Test current(1 cycle) [A]
150 275 710 1050 1120 1600
I2[A2s]
110 380 2520 5500 6270 12800
Terminal/casing thermal resistance[°C/W]
0.5 0.4 0.25 0.155 0.155 0.15



Output parameters

Control voltage
3-32Vdc 18-36Vac 90-280Vac
Max  input current
14mA 16mArms 10mArms
Input resistance
Current regulator



General parameters

Operation temperature range[°C]
-20 - +80
I/O insulation voltage
4000Vrms
I/O capacity
2500 Vrms
Insulation voltage
8 pF (typowo)
Operation frequency range
47 + 63Hz
Casing material
UL94V0 (samogaszący)
Marking


Turn on at 0 voltage
nominal currentnominal voltagControl voltageIP00IP20
10A 24-280VAC 90-280Vac 84 134 001 84 137 001
3-32Vdc 84 134 000 84 137 000
48-660VAC 90-280Vac 84 134 101 84 137 101
4-32Vdc 84 134 100 84 137 100
25A 24-280VAC 90-280Vac 84 134 011 84 137 011
3-32Vdc 84 134 010 84 137 010
48-660VAC 90-280Vac 84 134 111 84 137 111
4-32Vdc 84 134 110 84 137 110
50A 24-280VAC 90-280Vac 84 134 021 84 137 021
3-32Vdc 84 134 020 84 137 020
48-660VAC 90-280Vac 84 134 121 84 137 121
4-32Vdc 84 134 120 84 137 120
75A 24-280VAC 90-280Vac 84 134 031 84 137 031
3-32Vdc 84 134 030 84 137 030
48-660VAC 90-280Vac 84 134 131 84 137 131
4-32Vdc 84 134 130 84 137 130
100A 24-280VAC 90-280Vac 84 134 041 84 137 041
3-32Vdc 84 134 040 84 137 040
48-660VAC 90-280Vac 84 134 141 84 137 141
4-32Vdc 84 134 140 84 137 140
125A 24-280VAC 90-280Vac 84 134 081 84 137 081
3-32Vdc 84 134 080 84 137 080
48-660VAC 90-280Vac 84 134 181 84 137 181
4-32Vdc 84 134 180 84 137 180


immediate turn on
nominal currentnominal voltagControl voltageIP00IP20
10A 24-280VAC
48-660VAC
3-32Vdc 84 134 200 84 137 200
4-32Vdc 84 134 300 84 137 300
25A 24-280VAC
48-660VAC
3-32Vdc 84 134 210 84 137 210
4-32Vdc 84 134 310 84 137 310
50A 24-280VAC
48-660VAC
3-32Vdc 84 134 220 84 137 220
4-32Vdc 84 134 320 84 137 320
75A 24-280VAC
48-660VAC
3-32Vdc 84 134 230 84 137 230
4-32Vdc 84 134 330 84 137 330
100A 24-280VAC
48-660VAC
3-32Vdc 84 134 240 84 137 240
4-32Vdc 84 134 340 84 137 340
125A 24-280VAC
48-660VAC
3-32Vdc 84 134 280 84 137 280
4-32Vdc 84 134 380 84 137 380

Dimensions[mm]
]

Load current vs ambient temperature





Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us

ASK FOR THE PRODUCT close
Message sent successfully.
ASK FOR THE PRODUCT close
Browse

Add to Wishlist

You must be logged in
