Optic safe barrier - SF4B series
  • Optic safe barrier - SF4B series

Photos are for informational purposes only. View product specification

Manufacturer: Panasonic

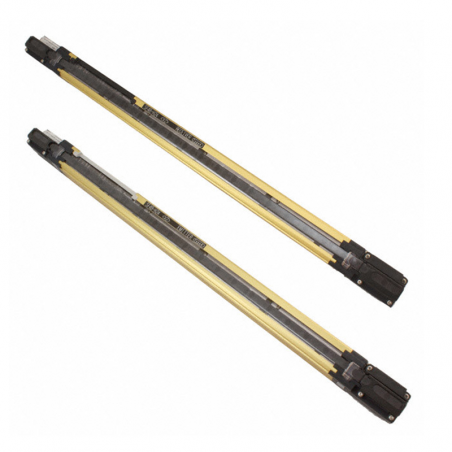

Optic safe barrier - SF4B series

Typ 4 PLd SIL3
• Type IV (according to: PN-EN-954-1)
• SIL CL3 PL e (new standards: EN13849-1, EN62061)
• No dead zone, first beam 5 mm from the casing end
• Response time (14ms)
• Finger protection (14mm), hand (25mm) and body (45mm)
• External contact control(EDM)
• Self interference protection
• PNP or NPN outputs

TypeFinger protectionHand protectionBody protection
Model SF4B-F__ SF4B-H__ SF4B-A__
Resolution 14 mm 25 mm 45 mm
Operation range 0,3 do 7 m 0,3 do 9 m 0,3 do 9 m
Height 230 do 1270 mm 230 do 1910 mm 230 do 1910 mm
Beam raster 10 mm 20 mm 40 mm
Power supply 24 VDC +/-10 %
Output type PNP / NPN
Response time Stan OFF: 14ms, Stan ON: 80-90 ms
Dimensions W28 X H protected heightX D30 mm

No dead zone, possibility of cascade connections of up to 3 barriers

Build in diagnostics and indicators
Build in diagnostics and indicators
