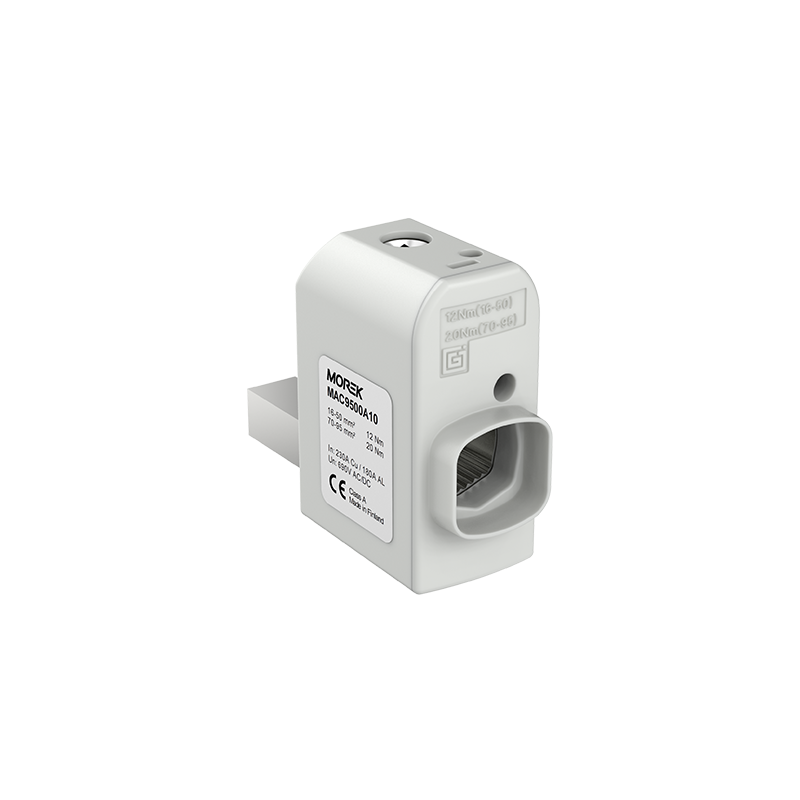

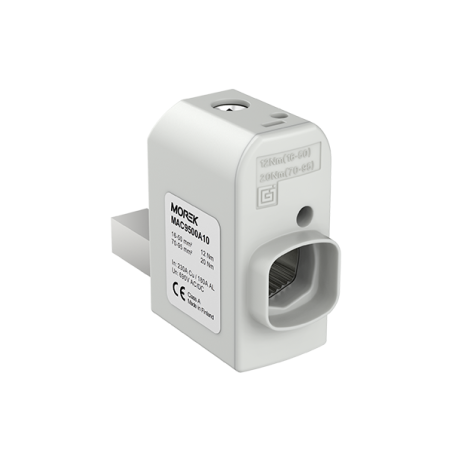

SR95MR 1xAl/Cu 16-95mm²690V insulated device terminal, with right-hand pin and measuring socket
SR95MR 1xAl/Cu 16-95mm²690V insulated device terminal, with right-hand pin and measuring socket

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: MOREK

SR95MR 1xAl/Cu 16-95mm²690V insulated device terminal, with right-hand pin and measuring socket MAC9509A10

  • MAC9509A10
  • Width (mm) 26.6
  • Depth (mm) 67.8
  • Colour szary
  • Transparent cover Nie
  • Height (mm) 51
  • Mounting method Direct mount
  • Rated Current [A] 230
    690
  • Number of poles 1
  • Halogen-free UN
  • Cross-section of connectable multi-core cable [mm²] 16..95
  • Type of electrical connection Plug connection
    Screw connection
  • Insulating body material Thermoplastic material
  • Flammability class of the insulating material according to UL94 V0
  • Explosion-tested version "Ex e" NO
  • Closing plate required NO
  • Distance of the center drilled hole [mm] NA
  • Connectable cross-section of fine wire without cable end sleeve [mm²] 16..95
  • Connectable cross-section of fine wire with cable end sleeve [mm²] 16..95
  • Cross-section of connecting wire, solid wire [mm²] 16..95
  • Number of terminals per pole 1
  • Working temperature ..80
