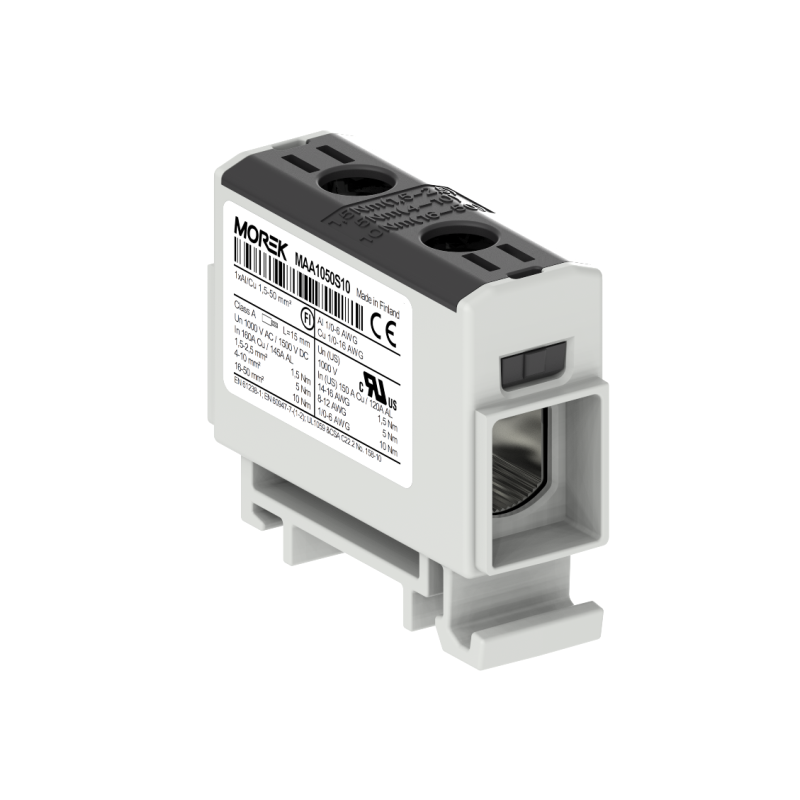

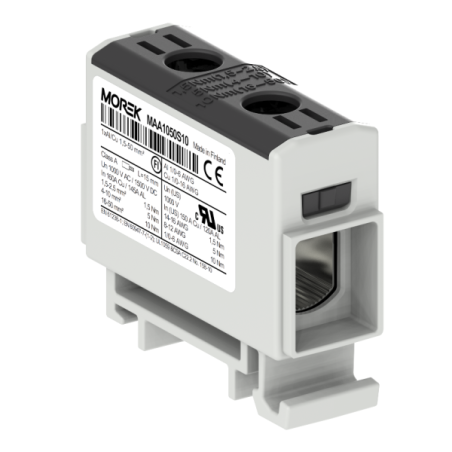

OTL50 black color 1xAl/Cu 1.5-50mm² 1000V AC / 1500V DC Universal terminal MAA1050S10
OTL50 black color 1xAl/Cu 1.5-50mm² 1000V AC / 1500V DC Universal terminal MAA1050S10

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: MOREK

OTL50 black color 1xAl/Cu 1.5-50mm² 1000V AC / 1500V DC Universal terminal MAA1050S10

  • MAA1050S10
  • Width (mm) 18
  • Depth (mm) 50
  • Rated voltage 1500
  • Colour Black
  • Height (mm) 43
  • Mounting method DIN TH-35 mm mounting rail
  • Rated Current [A] 160
  • Cross-section of the fine-wire connecting cable without cable end sleeve [mm²] 1.5..35
  • Cross-section of fine-strand connecting cable with end sleeve [mm²] 1.5..35
  • Cross-section of connecting wire, solid wire [mm²] UN
  • Cross-section of connectable multi-core cable [mm²] 1.5..50
  • Type of electrical connection Screw connection
  • Number of levels 1
  • Number of clamp positions per level 2
  • Insulating body material Thermoplastic material
  • Flammability class of the insulating material according to UL94 V0
  • Explosion-tested version "Ex e" NO
  • Closing plate required NO
  • Internally connected steps Yes
  • Working temperature -25..80

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Width (mm) 18
  • Depth (mm) 50
  • Rated voltage 1500
  • Colour Black
  • Height (mm) 43
  • Mounting method DIN TH-35 mm mounting rail
  • Rated Current [A] 160
  • Cross-section of the fine-wire connecting cable without cable end sleeve [mm²] 1.5..35
  • Cross-section of fine-strand connecting cable with end sleeve [mm²] 1.5..35
  • Cross-section of connecting wire, solid wire [mm²] UN
  • Cross-section of connectable multi-core cable [mm²] 1.5..50
  • Type of electrical connection Screw connection
  • Number of levels 1
  • Number of clamp positions per level 2
  • Insulating body material Thermoplastic material
  • Flammability class of the insulating material according to UL94 V0
  • Explosion-tested version "Ex e" NO
  • Closing plate required NO
  • Internally connected steps Yes
  • Working temperature -25..80
