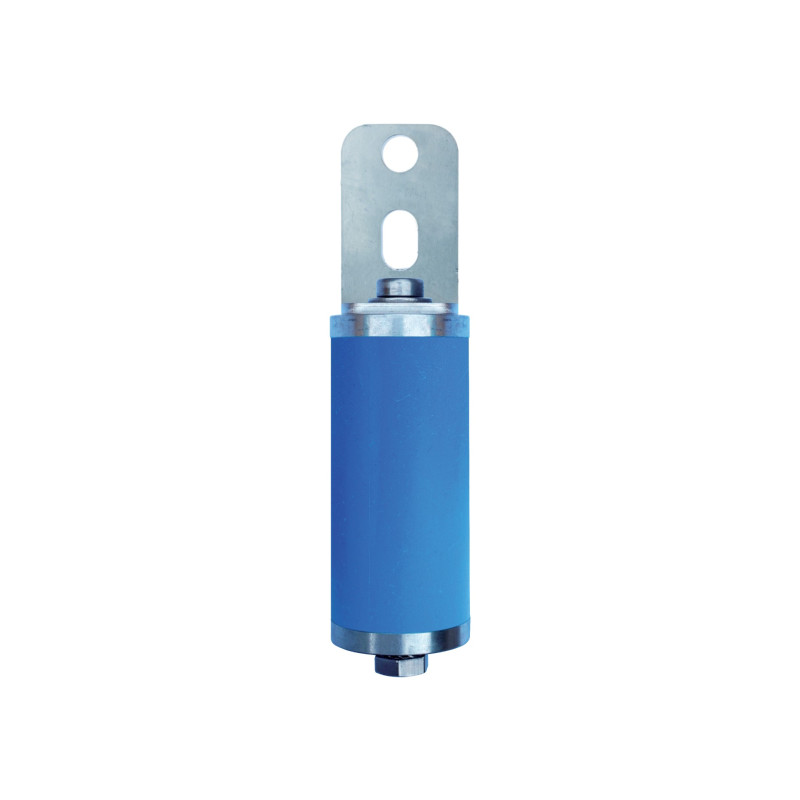

P60GI - Low voltage limiter - 50800/I

Gas-filled lightning arresters are designed for equipotential bonding of building installation components or technological assemblies that are not galvanically connected (in accordance with ČSN EN 62305, ed. 2). They are primarily recommended for protecting insulated flanges and insulated threaded connections of cathodically protected industrial process pipelines. If a potential difference exceeding 600 V occurs between these components, the lightning arrester will trip and temporarily conductively connect both components (the typical internal tripping resistance of the P600G lightning arrester is 0.001–0.002 W). The P600GI can be installed both indoors and outdoors, as well as in damp or underground locations. The functional component of the P600G is a special gas-filled lightning arrester with a shortened response time of 20 ns, rated for a lightning current of 100 kA (10/350). The outer casing is made of light blue silicone rubber, which is hydrophobic and offers excellent resistance to weathering, pollution, and UV radiation. The mounting bracket, mounting screws, and nuts are made of stainless steel, suitable for connecting 16-50 mm² Fe (Cu) cables. The product is supplied with an integrated bracket, allowing the P600G to be mounted directly to a protected metal structure (pole, wall, or flange).
