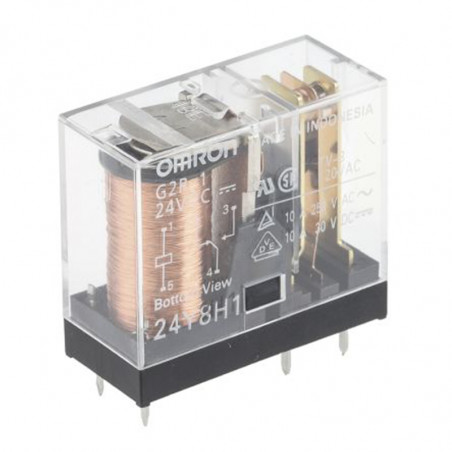

Plug in power relays - G2R-…SN series

Plug in power relays - G2R-…SN series

Electrical data
• Connection power min
5 V DC, lOOmA
• Operation time
V Dax. 15 00s (mA/DC)
• fall time
max. 10 ms (AC

max. 5 ms ( (DC)

with diode. 20 ms
• mechanical withstand
coil AC:         10 mln switching cycles

coil DC:         20 mln switching cycles
• Contact material
AgCdO
• Max voltage:
400 V AC, 125 V DC
• Ambient temperature
-40 - 70°C
• Dimensions
29x13x 29 mm
• Certyficates
UL,CSA,SEV,TÜV,VDE


TypeCoil nominal voltageCoil nominal currentCoil resistanceNominal load at
250 VAC          30 VDC
CurrentMax switching currentMax switching power
Max switching power
G2R-1-SN24DC 24 V DC 22 mA 1100 Ω 10A 10A 10A 10A 2500 VA, 300 W
G2R-1-SND24DC
with diode
24 V DC 22 mA 1100 Ω 10A 10A 10A 10A 2500 VA, 300 W
G2R-1-SN24AC 24 VAC 46 mA 260 Ω
G2R-1-SN 230 AC 230 VAC 4,6 mA 26,85 kΩ
base
P2RF-05-E DIN assembled or on the base plate
P2R-05-P PCB assembled
Relay with LED indicator
G2R-24-SN 24 DC 24 V DC 4,6 mA 1100 Ω 5 A 5 A 5 A 5 A 1250VA, 150 W
G2R-2-SND24DC
with diode
24 V DC 22 mA 1100 Ω 5 A 5 A 5 A 5 A 1250VA, 150 W
G2R-2-SN 24 AC 24 VAC 46 mA 260 Ω
G2R-2-SN 230 AC 230 VAC 4,6 mA 26,85 kΩ
Base
P2RF-08-E DIN assembled or on the base plate

G2R-1-SN

G2R-2-SN

//
