Manufacturer: ZIEHL

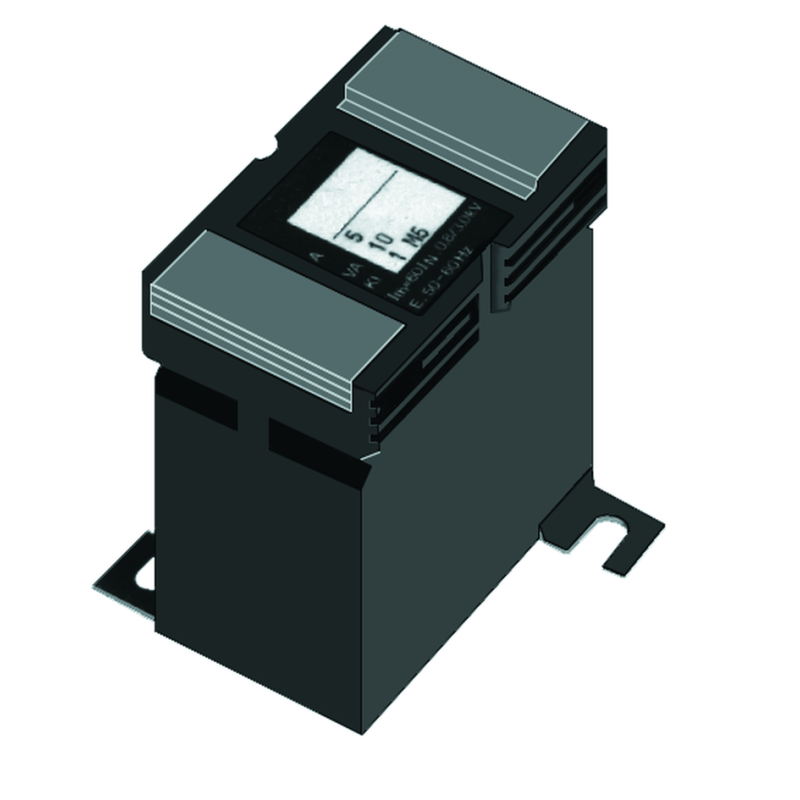

WS30-5 - Current Transformer for AC-Current - S225689

  • S225689
  • Product Type IP00 motor, IP20 electronics
  • Execution Die-cast aluminum
  • Additional information PA plastic, black painted sheet metal
  • Measured value Insert made of aluminum sheet, sprayed with PP plastic

For currents >5A current monitors require a current transformer with secondary 1 or 5 A and a rated capacity of min. 1.5VA. The primary rated current must be appropriate to the max. expected current(fuse). Tube or wound current transformers can be used.
We recommend the use of WS tube current transformers for primary rated currents of 5 to 30 A.
The transformers have a class 1 accuracy and a voltage resistance of up to 800 V.

When ordering, please indicate desired primary and secondary rated current.
