Manufacturer: Ebmpapst

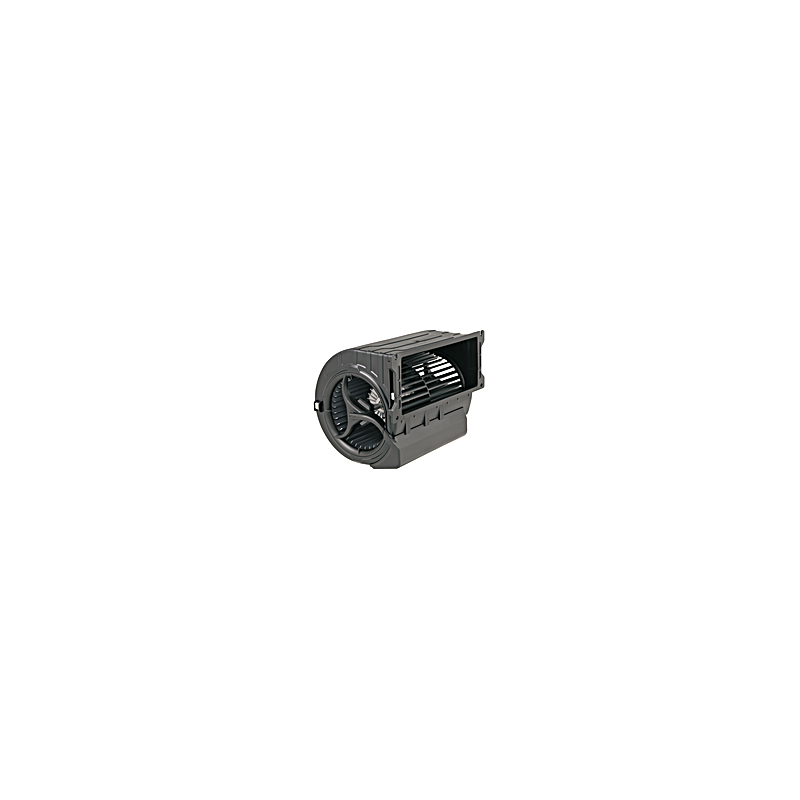

D1G146-LV03-01 EC radial fan 230V 165W

  • D1G146LV0301
  • Housing material Plastik PP
  • Protection rating IP20
  • Frequency 50/60
  • Input power 165
  • Phase 1~
  • Nominal voltage 230
  • Speed 1840
  • Current draw 1.2
  • Max. ambient temperature 50
  • Size 146 mm
  • Fan type EC double inlet centrifugal blower with spiral housing
  • Voltage range 200 ... 240
  • Rotor material Steel sheet, galvanized
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 55
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H0 - dry environment
  • Motor bearing Ball bearing
  • Rotor surface Thick-layer passivated
  • Electronics housing material PP plastic
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Min. back pressure 115
  • Weight 2,44 kg
  • Compliance with standards EN 60335-1 / CE
