Manufacturer: Ebmpapst

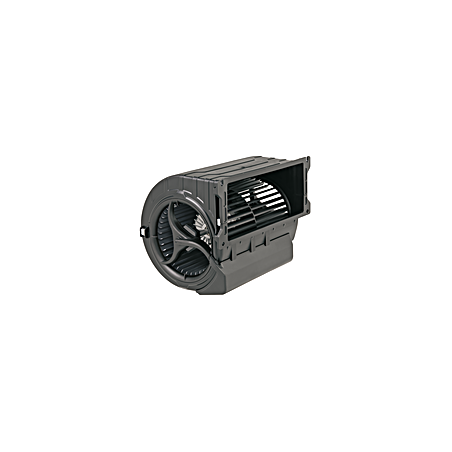

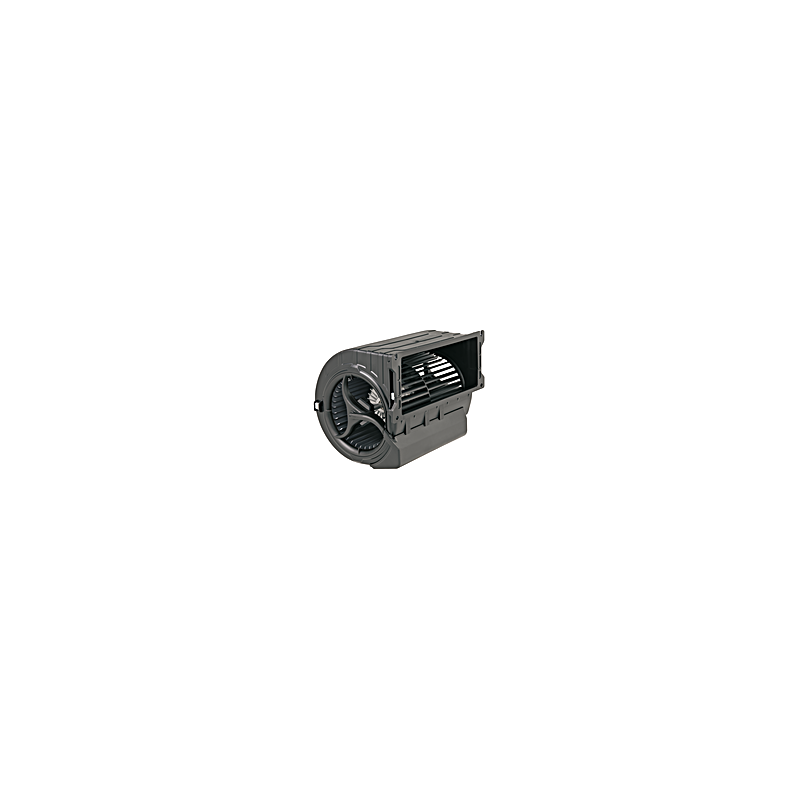

D2D133-DB40-03 AC centrifugal fan 400/400/400/400V 195/105/240/115W

  • D2D133DB4003
  • Connection D / Y / D / Y
  • Housing material Steel sheet, galvanized
  • Protection rating IP44
  • Frequency 50 / 50 / 60 / 60
  • Input power 195 / 105 / 240 / 115
  • Phase 3~ / 3~ / 3~ / 3~
  • Nominal voltage 400 / 400 / 400 / 400
  • Speed 2250 / 1550 / 2350 / 1450
  • Current draw 0.31 / 0.16 / 0.37 / 0.18
  • Certificate EAC
  • Size 133 mm
  • Fan type AC dual inlet centrifugal blower with spiral housing
  • Rotor material Steel sheet, galvanized
  • Type of voltage AC / AC / AC / AC
  • Motor protection Automatic reset thermal cutout, lead-out, with basic insulation
  • Motor size 68
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H1+
  • Motor bearing Ball bearing / (sealed)
  • Rotor surface Painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Valid for approval / standard CE / CE / CE / CE
  • Min. back pressure 210 / 95 / 230 / 85
  • Weight 4,08 kg
  • Compliance with standards EN 50155
