Manufacturer: Ebmpapst

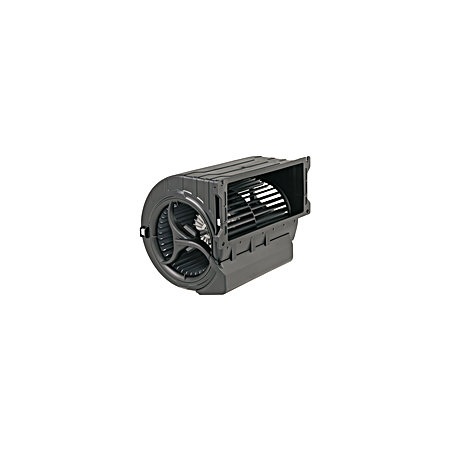

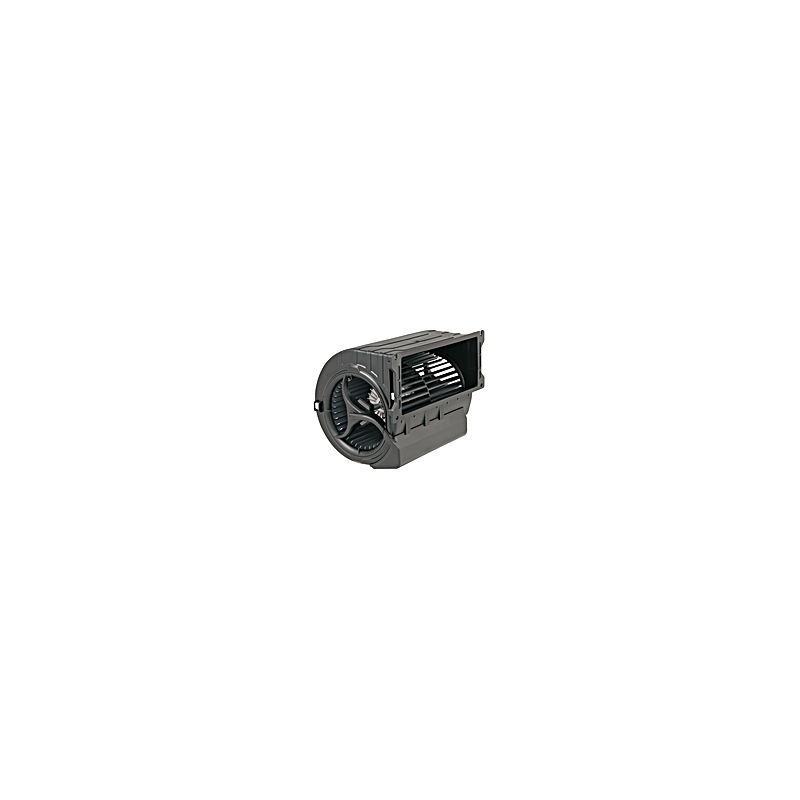

D3G133-LV05-31 EC radial fan 230V 170W

  • D3G133LV0531
  • Housing material Plastik PP
  • Protection rating IP00 motor, IP20 electronics
  • Frequency 50/60
  • Input power 170
  • Phase 1~
  • Nominal voltage 230
  • Speed 2030
  • Current draw 0.8
  • Max. ambient temperature 60
  • Certificate CSA C22.2 No. 77 + CAN/CSA-E60730-1 / UL 1004-7 + 60730-1
  • Size 133 mm
  • Fan type EC double inlet centrifugal blower with spiral housing
  • Voltage range 200 ... 240
  • Rotor material Steel sheet, galvanized
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 55
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H0 - dry environment
  • Motor bearing Ball bearing
  • Electronics housing material PP plastic
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Min. back pressure
  • Weight 2,58 kg
  • Compliance with standards EN 60335-1 / CE
