Manufacturer: Ebmpapst

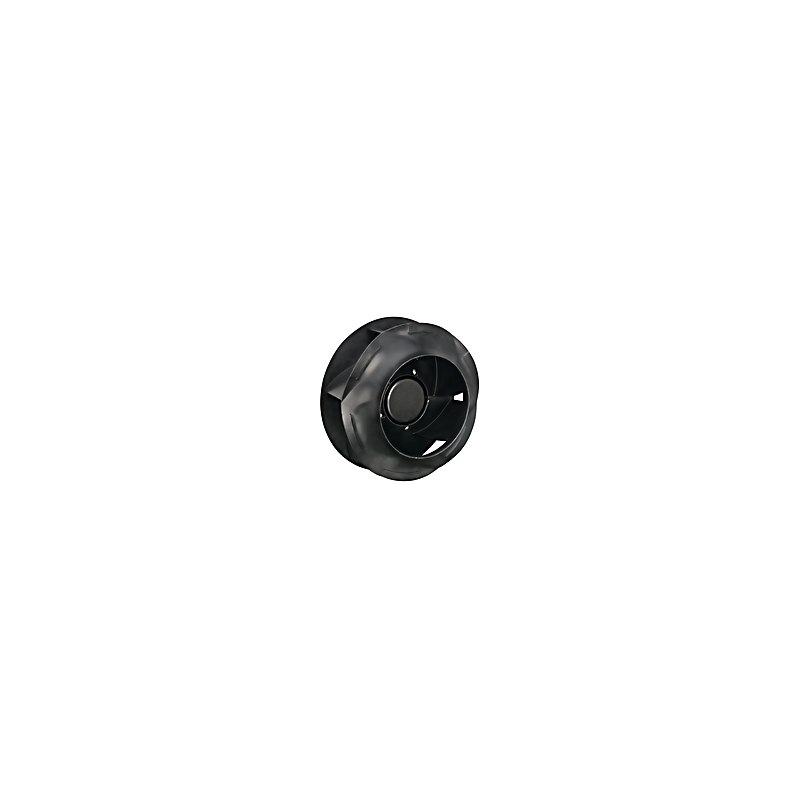

G2D180-AB10-03 AC centrifugal fan 400/400/400/400/480/480V 450/240/490/230/580/300W

  • G2D180AB1003
  • Connection D / Y / D / Y / D / Y
  • Housing material Die-cast aluminum
  • Protection rating IP44
  • Frequency 50 / 50 / 60 / 60 / 60 / 60
  • Input power 450 / 240 / 490 / 230 / 580 / 300
  • Phase 3~ / 3~ / 3~ / 3~ / 3~ / 3~
  • Nominal voltage 400 / 400 / 400 / 400 / 480 / 480
  • Speed 2150 / 1400 / 2400 / 1500 / 2700 / 1750
  • Current draw 0.7 / 0.37 / 0.75 / 0.37 / 0.75 / 0.4
  • Min. ambient temperature -40 / -40 / -40 / -40
  • Certificate EAC
  • Size 180 mm
  • Fan type AC single inlet centrifugal blower with volute housing
  • Rotor material Black painted steel sheet
  • Type of voltage AC / AC / AC / AC / AC / AC
  • Motor protection Automatic reset thermal cutout, lead-out, with basic insulation
  • Motor size 74
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H1+
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Valid for approval / standard CE / CE / CE / CE / CE / CE
  • Min. back pressure 0 / 0 / 320 / 120 / 400 / 160
  • Weight 5,44 kg
  • Compliance with standards EN 50155
