Manufacturer: Ebmpapst

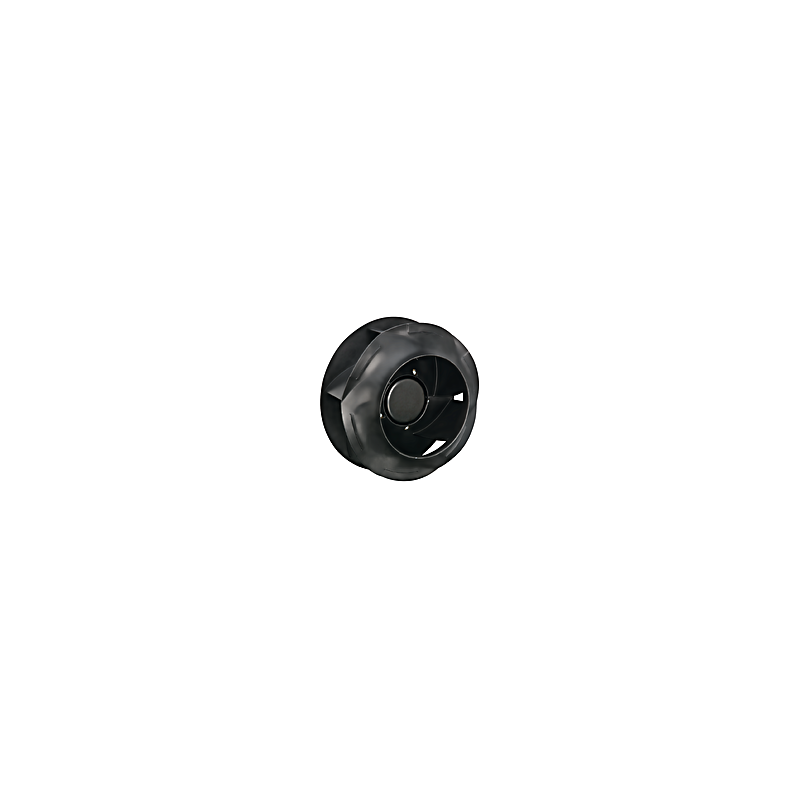

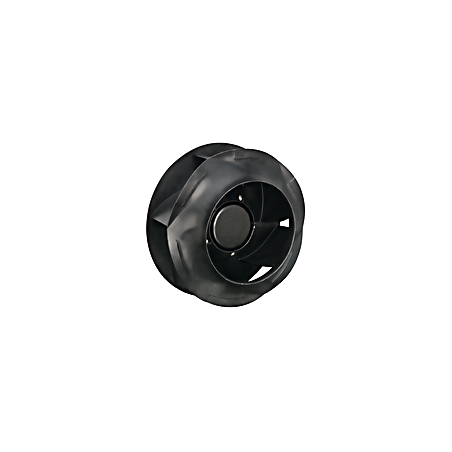

G3G190-RD45-03 EC radial fan 230V 170W

  • G3G190RD4503
  • Housing material Plastik PP
  • Protection rating IP54 / depending on mounting and position
  • Frequency 50/60
  • Input power 170
  • Phase 1~
  • Nominal voltage 230
  • Speed 4100
  • Current draw 1.35
  • Max. ambient temperature 60
  • Certificate UL 1004-7 + 60730-1 / CSA C22.2 No. 77 + CAN/CSA-E60730-1 / EAC
  • Size 190 mm
  • Fan type EC single inlet centrifugal blower with spiral housing
  • Voltage range 200 ... 240
  • Rotor material PP plastic
  • Type of voltage AC
  • Motor protection Electronic engine protection
  • Motor size 55
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing
  • Rotor surface Thick-layer passivated
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Min. back pressure
  • Weight 2,08 kg
  • Compliance with standards EN 60335-1 / CE / UKCA
