Manufacturer: Ebmpapst

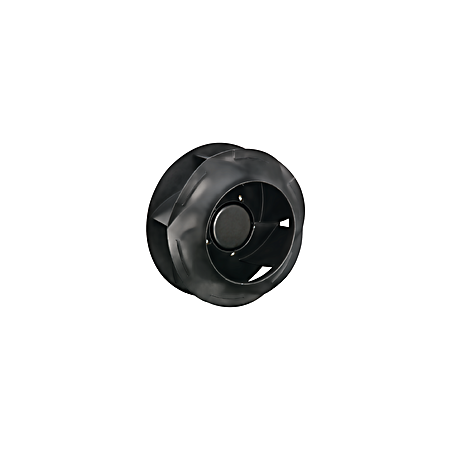

G3G190-RG19-05 EC radial fan 230V 115W

  • G3G190RG1905
  • Housing material Plastik PP
  • Protection rating IP54
  • Frequency 50/60
  • Input power 115
  • Phase 1~
  • Nominal voltage 230
  • Speed 3650
  • Current draw 0.9
  • Min. ambient temperature -25
  • Max. ambient temperature 55
  • Size 190 mm
  • Fan type EC single inlet centrifugal blower with spiral housing
  • Voltage range 200 ... 240
  • Rotor material PP plastic
  • Type of voltage AC
  • Motor protection Electronic engine protection
  • Motor size 55
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing
  • Rotor surface Thick-layer passivated
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 1,94 kg
  • Compliance with standards EN 60335-1 / CE
