Manufacturer: Ebmpapst

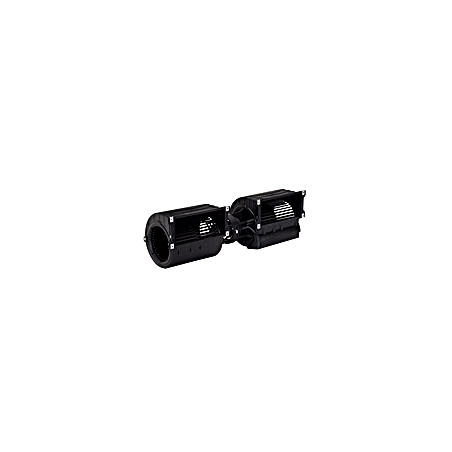

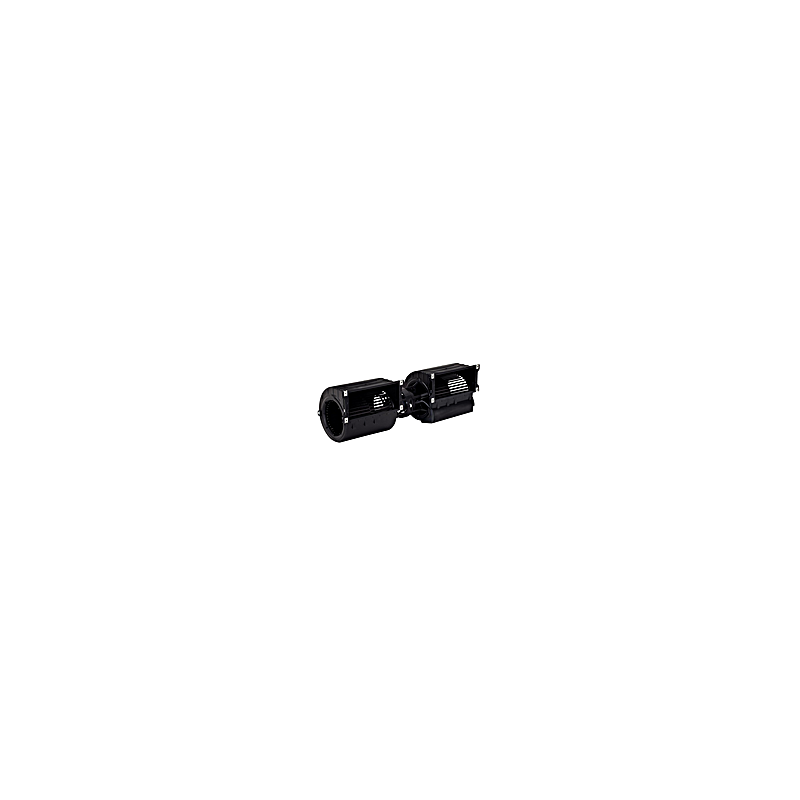

K3G133-LR15-01 EC radial fan 230V 69W

  • K3G133LR1501
  • Housing material Plastik PP
  • Protection rating Motor IP44, electronics IP20 / depending on mounting and position
  • Frequency 50/60
  • Input power 69
  • Phase 1~
  • Nominal voltage 230
  • Speed 1280
  • Current draw 0.56
  • Min. ambient temperature -25
  • Max. ambient temperature 50
  • Size 133 mm
  • Fan type EC double radial blower
  • Voltage range 200 ... 240
  • Rotor material PA plastic
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 55
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H0+
  • Motor bearing Ball bearing
  • Rotor surface Thick-layer passivated
  • Electronics housing material PP plastic
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Min. back pressure 40
  • Weight 3,3 kg
  • Compliance with standards EN 60335-1 / CE
