Manufacturer: Ebmpapst

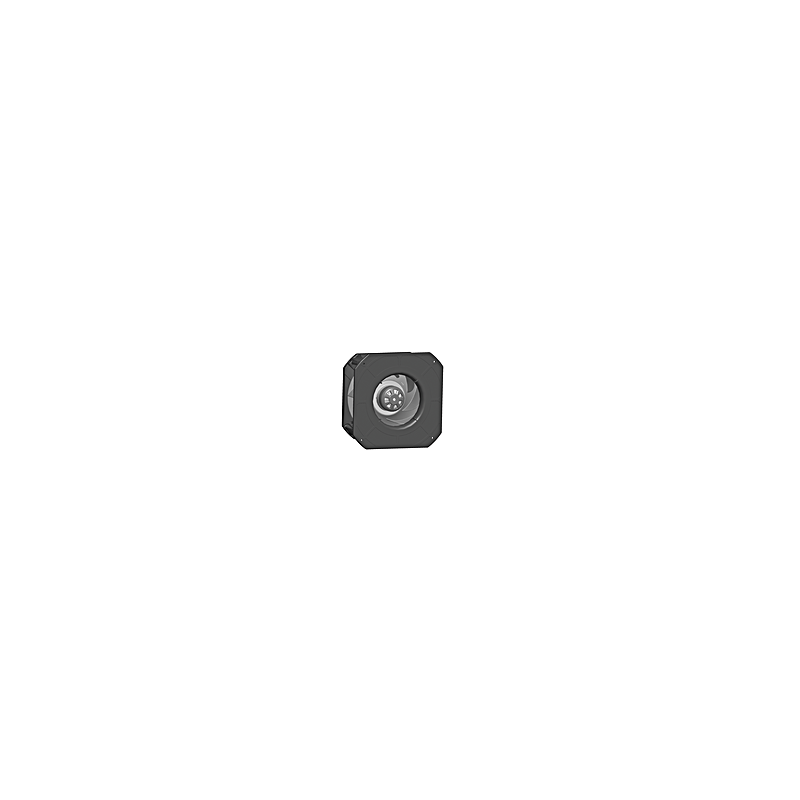

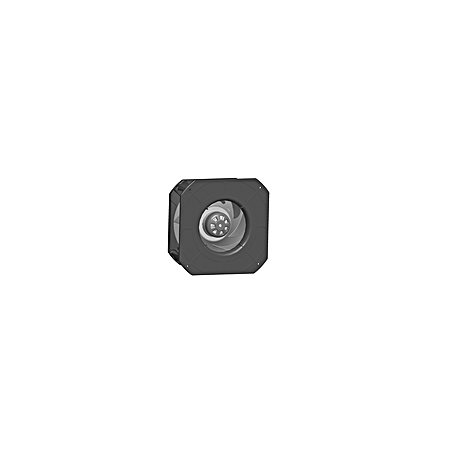

K3G250-BB01-N1 EC radial fan 400V 1050W

  • K3G250BB01N1
  • Protection rating IP55
  • Frequency 50/60
  • Input power 1050
  • Phase 3~
  • Nominal voltage 400
  • Speed 4000
  • Current draw 1.6
  • Min. ambient temperature -40
  • Max. ambient temperature 60
  • Certificate EAC
  • Size 250 mm
  • Fan type EC single-inlet centrifugal fan with mounting panel
  • Voltage range 380 ... 480
  • Rotor material Aluminum sheet
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 84
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H3
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 11,54 kg
  • Compliance with standards EN 15085-1, CPC3; EN 45545-2, HL3; EN 50155; EN 61373, Cat. 1B
