Manufacturer: Ebmpapst

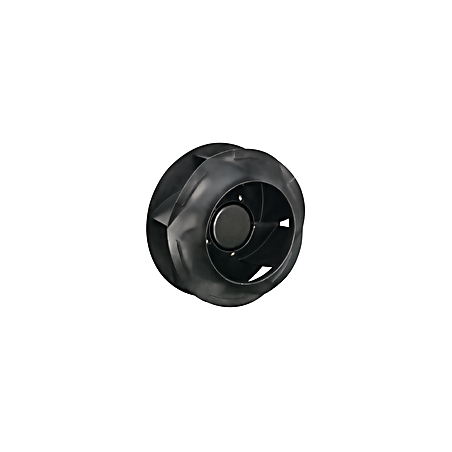

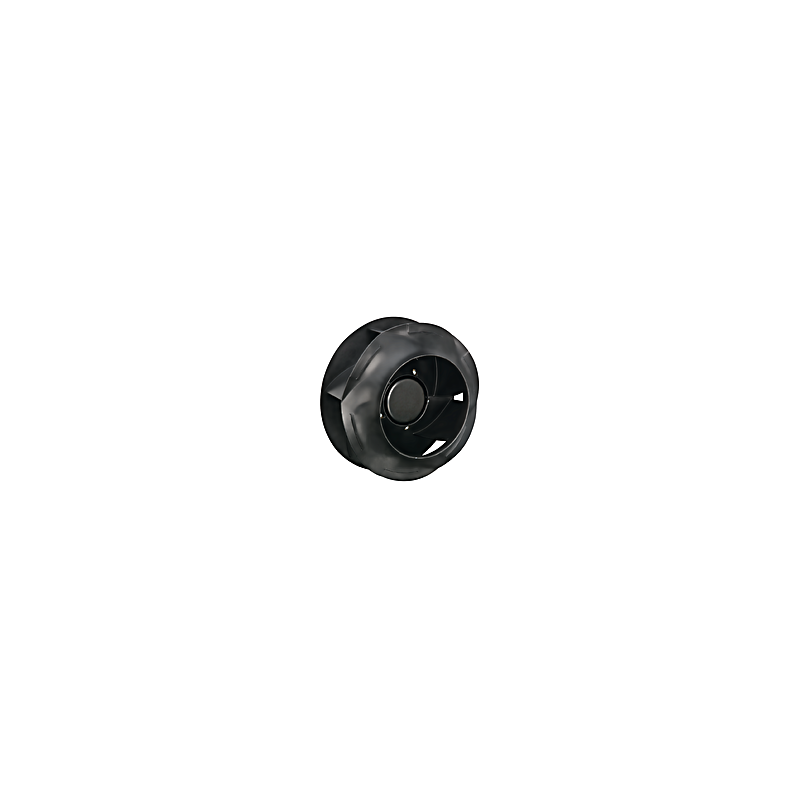

R3G250-RR01-V1 EC radial fan 230V 480W

  • R3G250RR01V1
  • Housing material Die-cast aluminum
  • Protection rating IP55
  • Frequency 50/60
  • Input power 480
  • Phase 1~
  • Nominal voltage 230
  • Speed 3600
  • Current draw 2.1
  • Max. ambient temperature 40
  • Certificate CSA C22.2 No. 77 + CAN/CSA-E60730-1 / EAC / UL 1004-7 + 60730-1
  • Size 250 mm
  • Fan type EC single-inlet centrifugal fan
  • Voltage range 200 ... 277
  • Rotor material PA66 UL material, black painted sheet metal
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 84
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 3,92 kg
  • Compliance with standards EN 61800-5-1; EN 60335-1 / CE
