Manufacturer: Ebmpapst

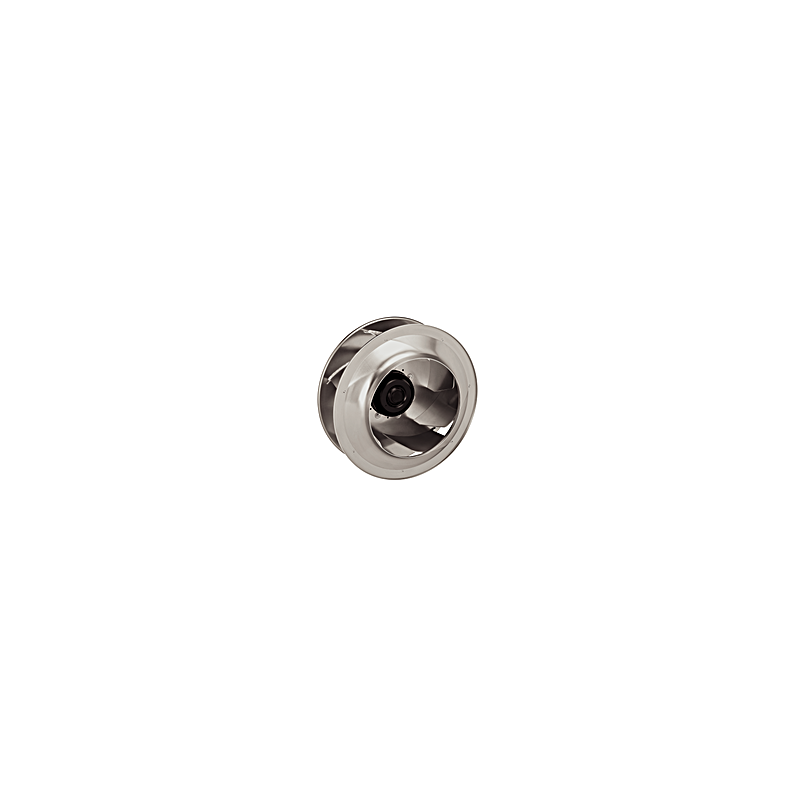

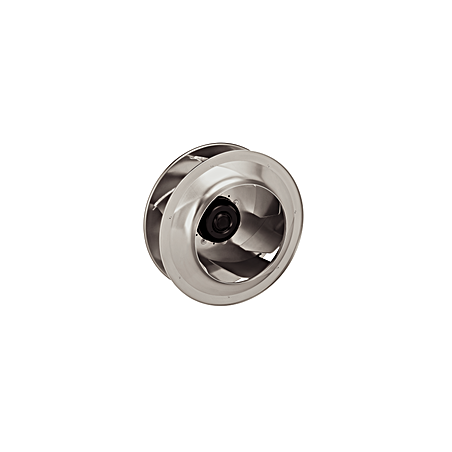

R3G310-BL06-G9 EC radial fan 230V 250W

  • R3G310BL06G9
  • Protection rating IP55 motor, IP20 electronics
  • Frequency 50/60
  • Input power 250
  • Phase 1~
  • Nominal voltage 230
  • Speed 1650
  • Current draw 1.1
  • Max. ambient temperature 55
  • Certificate UL 1004-7 + 60730-1 / EAC / CSA C22.2 No. 77 + CAN/CSA-E60730-1
  • Size 310 mm
  • Fan type EC single-inlet centrifugal fan
  • Voltage range 200 ... 277
  • Rotor material Aluminum sheet
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 84
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H0 - dry environment
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 5,1 kg
  • Compliance with standards EN 61800-5-1 / UKCA / CE

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Protection rating IP55 motor, IP20 electronics
  • Frequency 50/60
  • Input power 250
  • Phase 1~
  • Nominal voltage 230
  • Speed 1650
  • Current draw 1.1
  • Max. ambient temperature 55
  • Certificate UL 1004-7 + 60730-1 / EAC / CSA C22.2 No. 77 + CAN/CSA-E60730-1
  • Size 310 mm
  • Fan type EC single-inlet centrifugal fan
  • Voltage range 200 ... 277
  • Rotor material Aluminum sheet
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 84
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H0 - dry environment
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 5,1 kg
  • Compliance with standards EN 61800-5-1 / UKCA / CE
