Manufacturer: Ebmpapst

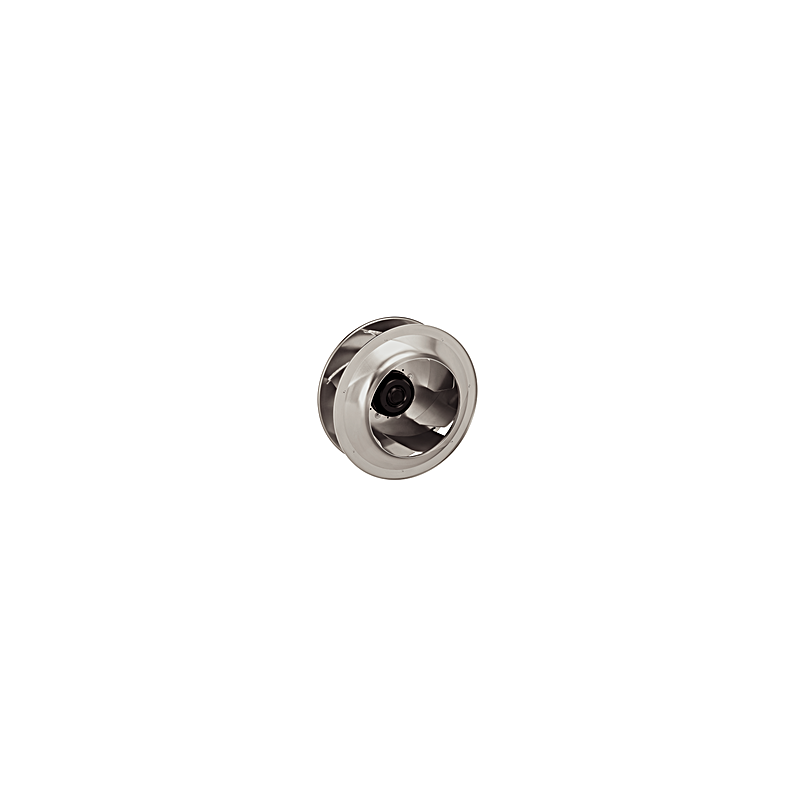

R3G310-FC99-01 EC radial fan 24V 105W

  • R3G310FC9901
  • Protection rating IP44 / depending on mounting and position
  • Input power 105
  • Nominal voltage 24
  • Speed 1650
  • Current draw 4.3
  • Max. ambient temperature 60
  • Certificate EAC
  • Size 310 mm
  • Fan type EC single-inlet centrifugal fan
  • Voltage range 16 ... 28
  • Rotor material PP plastic
  • Type of voltage DC
  • Motor size 74
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H0 - dry environment
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 2,902 kg
  • Compliance with standards EN 62368-1 / CE
