Manufacturer: Ebmpapst

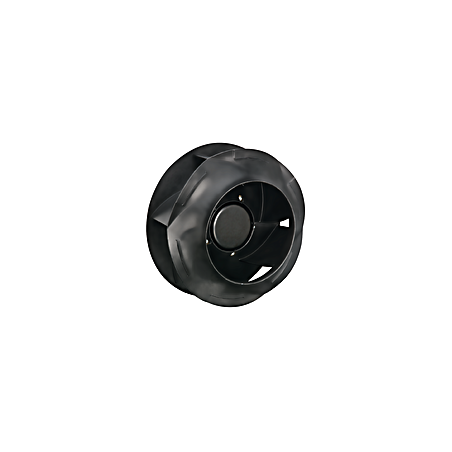

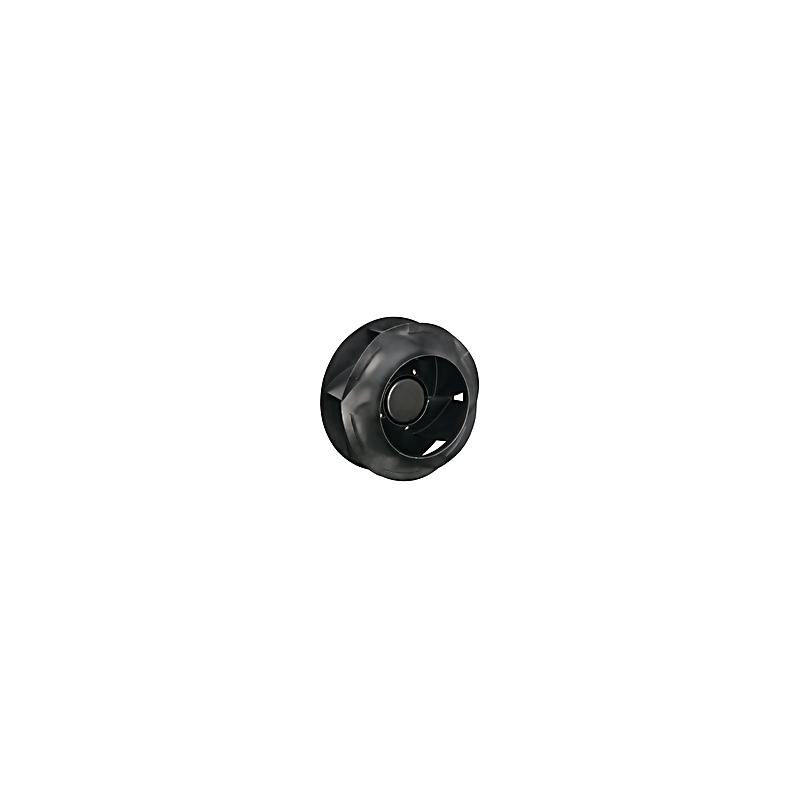

R3G310-RR05-H4 EC radial fan 230V 500W

  • R3G310RR05H4
  • Protection rating IP55
  • Frequency 50/60
  • Input power 500
  • Phase 1~
  • Nominal voltage 230
  • Speed 2250
  • Current draw 2.2
  • Min. ambient temperature -25
  • Max. ambient temperature 40
  • Certificate CSA C22.2 No. 113 / EAC / UL 507
  • Size 310 mm
  • Fan type EC single-inlet centrifugal fan
  • Voltage range 200 ... 277
  • Rotor material PP UL plastic
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 84
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 4,76 kg
  • Compliance with standards EN 60335-1; EN 61800-5-1 / CE
