Manufacturer: Ebmpapst

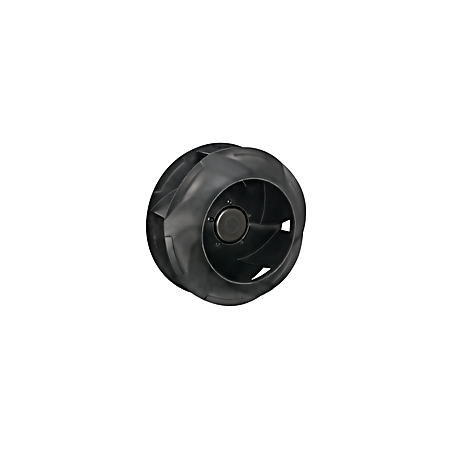

R3G450-PA31-03 EC radial fan 400V 4450W

  • R3G450PA3103
  • Protection rating IP55
  • Frequency 50/60
  • Input power 4450
  • Phase 3~
  • Nominal voltage 400
  • Speed 2480
  • Current draw 6.8
  • Max. ambient temperature 40
  • Certificate EAC / CSA C22.2 No. 77 + CAN/CSA-E60730-1 / UL 1004-7 + 60730-1
  • Size 450 mm
  • Fan type EC single-inlet centrifugal fan
  • Voltage range 380 ... 480
  • Rotor material Blacha aluminiowa
  • Type of voltage AC
  • Motor protection Reverse polarity and locked rotor protection
  • Motor size 150
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 20,48 kg
  • Compliance with standards EN 61800-5-1 / UKCA / CE
