Manufacturer: Ebmpapst

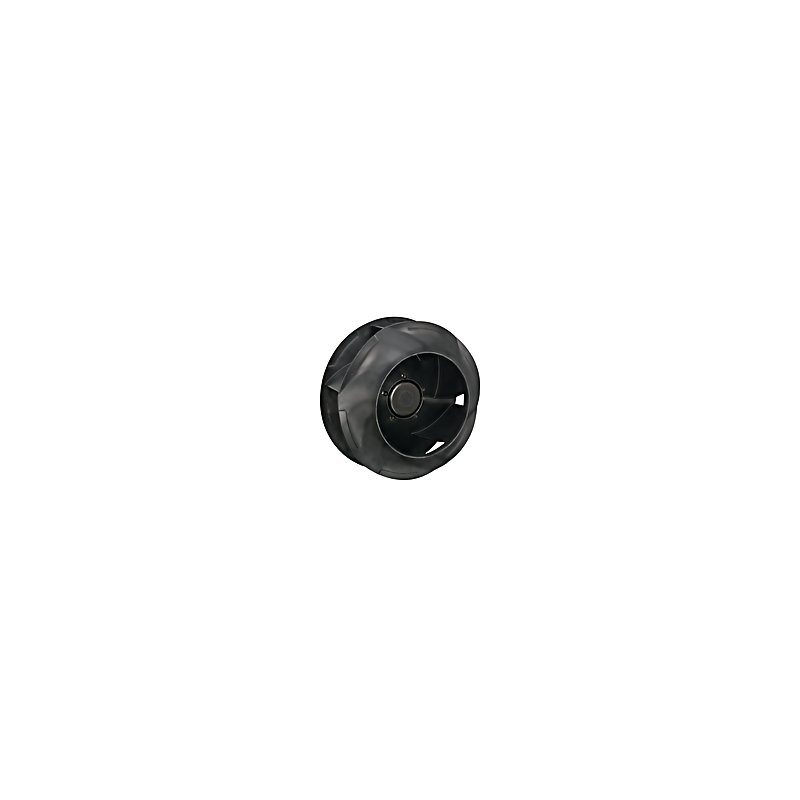

R3G450-RK56-01 EC radial fan 400V 950W

  • R3G450RK5601
  • Protection rating IP55
  • Frequency 50/60
  • Input power 950
  • Phase 3~
  • Nominal voltage 400
  • Speed 1550
  • Current draw 1.5
  • Min. ambient temperature -40
  • Max. ambient temperature 60
  • Certificate UL 1004-7 + 60730-1 / EAC / CSA C22.2 No. 77 + CAN/CSA-E60730-1 / CCC
  • Size 450 mm
  • Fan type EC single-inlet centrifugal fan
  • Voltage range 380 ... 480
  • Rotor material PP plastic
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 112
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing / (sealed)
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 10,6 kg
  • Compliance with standards EN 61800-5-1 / UKCA / CE
