Manufacturer: Ebmpapst

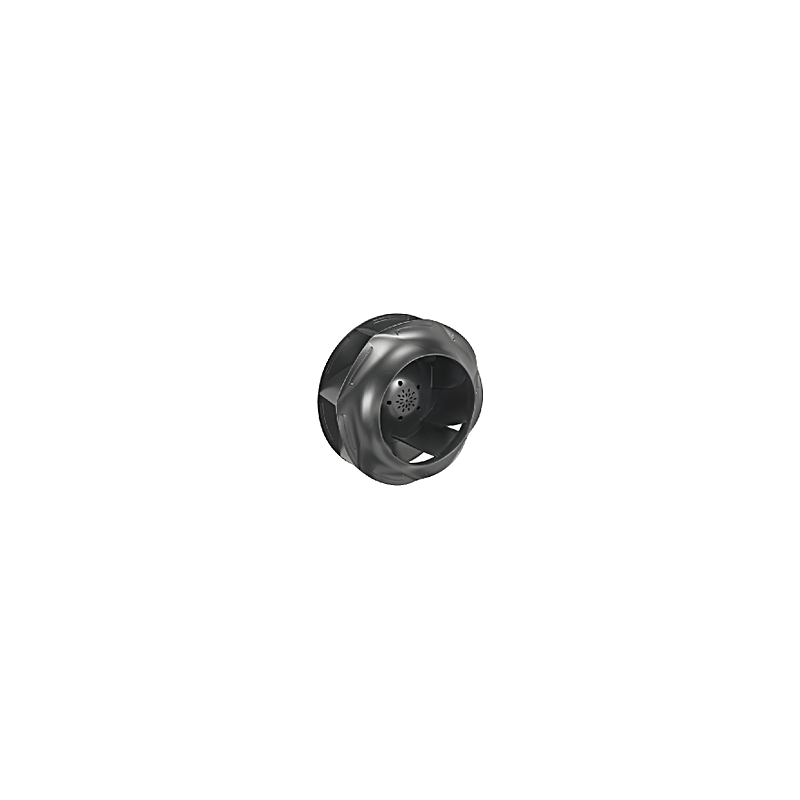

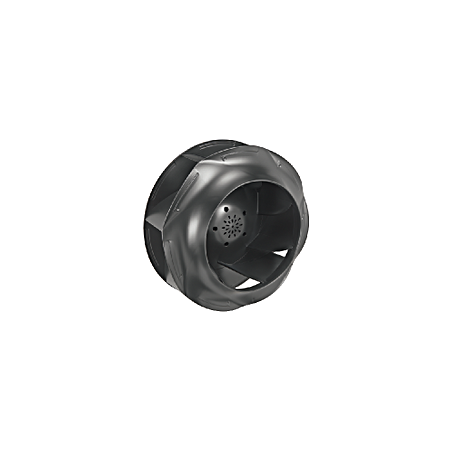

R3G560-PC04-01 EC radial fan 400V 5000W

  • R3G560PC0401
  • Protection rating IP55
  • Frequency 50/60
  • Input power 5000
  • Phase 3~
  • Nominal voltage 400
  • Speed 1760
  • Current draw 7.7
  • Max. ambient temperature 50
  • Certificate EAC / CSA C22.2 No. 77 + CAN/CSA-E60730-1 / UL 1004-7 + 60730-1
  • Size 560 mm
  • Fan type EC single-inlet centrifugal fan
  • Voltage range 380 ... 480
  • Rotor material Aluminum sheet
  • Type of voltage AC
  • Motor protection Reverse polarity and locked rotor protection
  • Motor size 150
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 38,5 kg
  • Compliance with standards EN 61800-5-1 / UKCA / CE
