Manufacturer: Ebmpapst

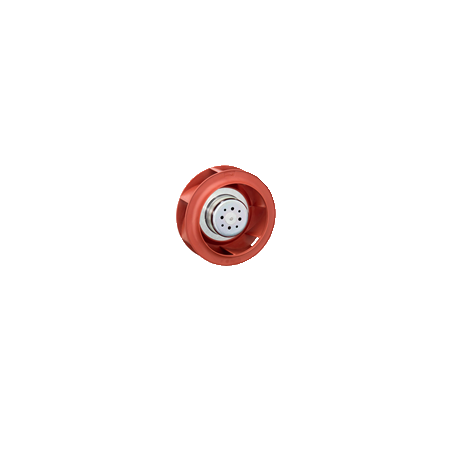

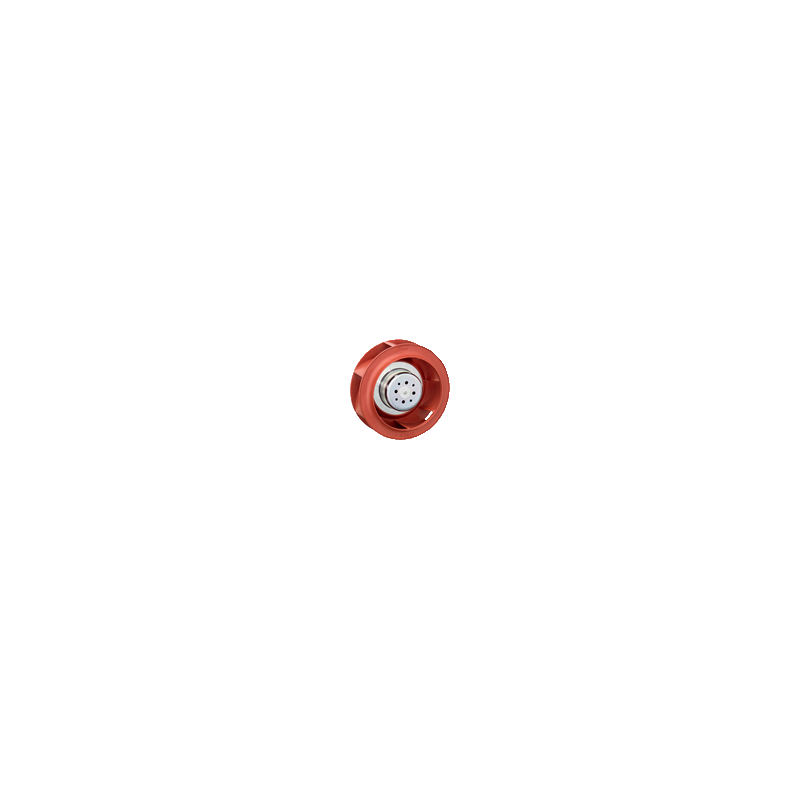

RER 175-42/18/2 TDP DC radial fan 48V 166W

  • RER17542182TDP
  • Air flow direction Axial inlet, radial outlet
  • Dimensions Ø 175 x 69 mm
  • Input power 166
  • Nominal voltage 48
  • Speed 5400
  • Min. ambient temperature -20
  • Max. ambient temperature 65
  • Air flow 980
  • Fan type DC radial fan
  • Voltage range 36 ... 72
  • Rotor material Glass fiber reinforced plastic
  • Type of voltage DC
  • Weight 0,775 kg
