Manufacturer: Ebmpapst

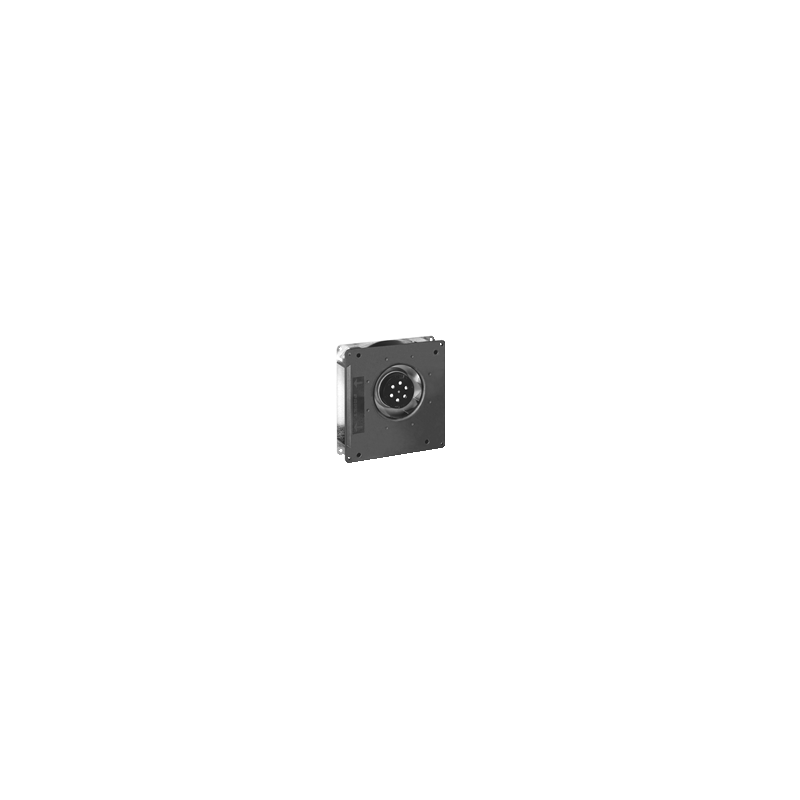

RG 125-19/56 AC radial fan 230V 20W

  • RG1251956
  • Air flow direction radial, discharge through the window in the housing
  • Dimensions 180 x 180 x 40 mm
  • Housing material Spiral housing made of PBT reinforced with glass fiber, housing base made of sheet steel
  • Frequency 50
  • Input power 20
  • Phase 1~
  • Nominal voltage 230
  • Speed 2550
  • Min. ambient temperature -30
  • Max. ambient temperature 70
  • Air flow 86
  • Fan type AC single inlet centrifugal fan with mounting panel
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage AC
  • Weight 0,85 kg
