Manufacturer: Ebmpapst

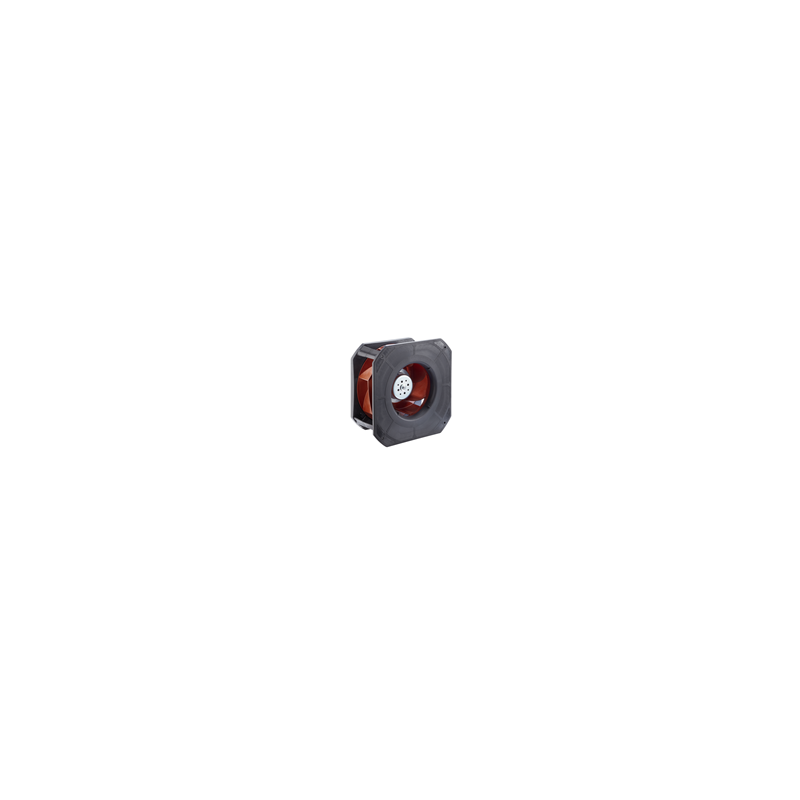

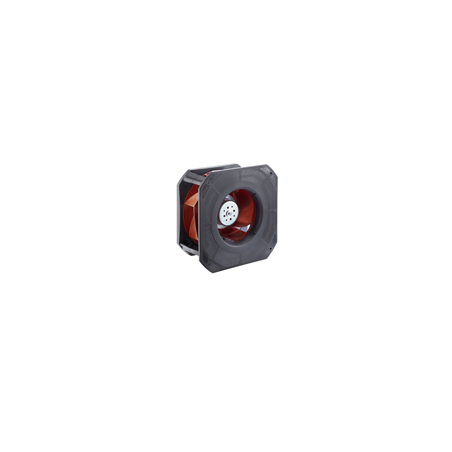

RG 225-55/18/2 TDO DC radial fan 48V 192W

  • RG22555182TDO
  • Air flow direction Axial inlet, radial outlet
  • Dimensions 270 x 270 x 119 mm
  • Housing material Housing made of glass fiber reinforced plastic
  • Input power 192
  • Nominal voltage 48
  • Speed 3300
  • Min. ambient temperature -20
  • Max. ambient temperature 40
  • Air flow 1450
  • Fan type DC single inlet centrifugal fan with mounting panel
  • Voltage range 36 ... 60
  • Rotor material Glass fiber reinforced plastic
  • Type of voltage DC
  • Weight 1,75 kg
