Manufacturer: Ebmpapst

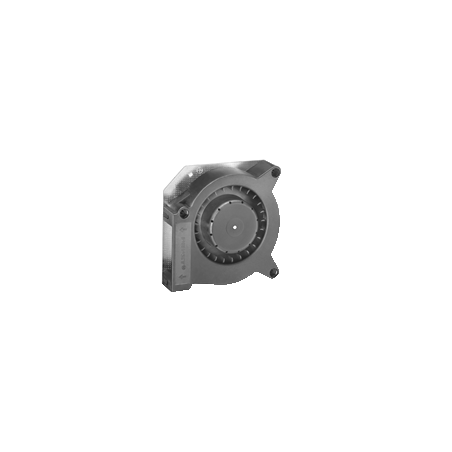

RL 90-18/14 NG DC radial fan 24V 5.6W

  • RL901814NG
  • Air flow direction Axial inlet, radial outlet discharge.
  • Dimensions 121 x 121 x 37 mm
  • Housing material Obudowa spirali z tworzywa wzmocnionego włóknem szklanym, podstawa obudowy z blachy stalowej
  • Input power 5.6
  • Nominal voltage 24
  • Speed 2500
  • Min. ambient temperature -20
  • Max. ambient temperature 75
  • Air flow 40
  • Fan type DC single inlet radial blower
  • Voltage range 12 ... 28
  • Rotor material Glass fiber reinforced plastic
  • Type of voltage DC
  • Locked-rotor protection Reverse polarity and locked rotor protection.
  • Weight 0,42 kg
