Rezystory mocy drutowe serii PE, PT
  • Rezystory mocy drutowe serii PE, PT

Photos are for informational purposes only. View product specification

Manufacturer: HVR

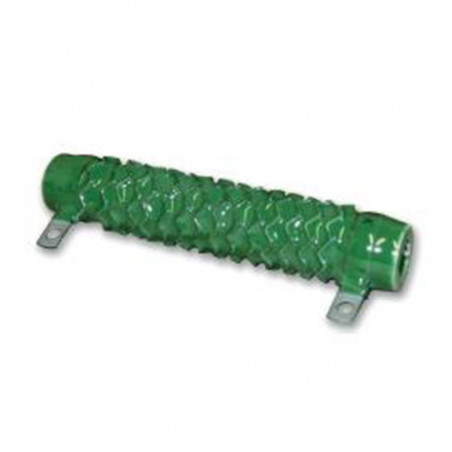

Wire power resistors of the PE series, PT

Technical data
  • power 35 to 625 W
  • Fixed and adjustable
  • Winding wire or tape
  • Horizontal or vertical installation
  • Mounting brackets

Type A resistance range
[Ω]

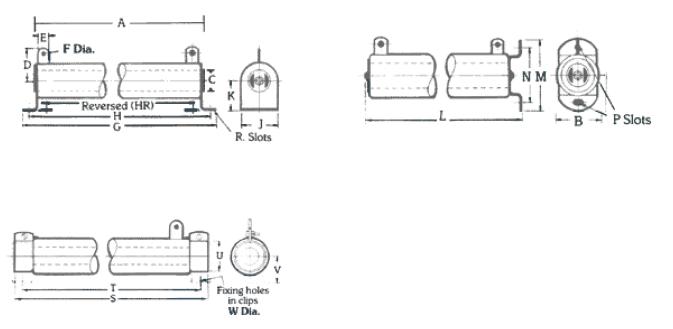

Dimensions
[cm]
Power at
3800C
[W]
Power at
2800C
[W]

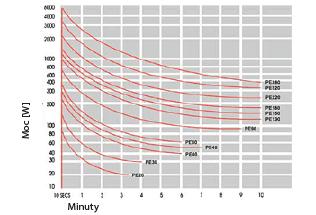

Dynamic power Max
tension

[Vm]
Min Max 10s
[W]
5s
[W]
1s
[W]
0,5s
[W]

PE30

2R2 5K0 5.1 x 1.9 35 30 200 400 600 1300 360

PE40

4R7 10K 10.2 x 1.9 65 40 300 600 900 1800 1080

PE45

4R7 10K 5.1 x3.2 65 45 400 800 1300 2600 360

PE60S

4R7 15K 7.0x3.2 75 60 600 1200 1900 3800 630

PE60L

4R7 15K 8.9x2.2 75 60 600 1200 1900 3800 890

PE90S

10R 30K 10.2x3.2 125 90 800 1600 2600 5200 860

PE90L

10R 30K 16.5x2.2 125 90 800 1600 2600 5200 1900

PE130

10R 60K 15.2x3.2 175 130 1000 2000 3300 6600 1500

PE150

12R 70K 17.8x3.2 195 150 1200 2400 3900 7900 1900

PE180

22R 100K 21.6x3.2 230 180 1500 3000 4950 9900 2400

PE220

22R 120K 26.7x3.2 285 220 2200 4400 7260 14500 3100

PE320

33R 120K 26.7x4.5 420 320 3500 7000 11550 23100 3100

PE380

47R 125K 30.5x4.5 500 380 6000 12000 19800 39600 3700

PE600

    30.5x5.4   600 9400 18800 31000 62000 3700

PE750

    35.6x5.4   750 11800 23600 38900 77800 4400

PT750</
